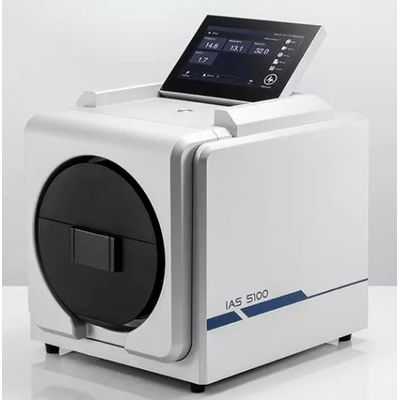

IAT - Model IAS-5100 - Portable NIR Grain Quality Analyzer
The IAS-5100 is a portable Near-Infrared (NIR) analyzer designed for precise grain quality assessment. It features a side-lighting design and diffuse reflectance which facilitates the continuous blending of granular samples during testing, enhancing the consistency and accuracy of analyses. The prediction models embedded within utilize a comprehensive database developed through extensive sampling, further refining the accuracy of results. This device is user-friendly, requiring minimal technical training due to its automatic functionality and intuitive 7-inch touchscreen interface. One-button operation enables swift analyses, typically within three minutes, making it ideal for use in marketplaces, trucks, and fields. Operable in a 5-45°C temperature range with less than 75% humidity, it incorporates advanced components, such as an InGaAs detector and an array of MEMS micromirrors combined with a grating.
The IAS-5100 portable NIR analyzer features diffuse reflectance through an innovative side-lighting structure and allows continuous blending of granular samples during testing. These designs will improve the accuracy and consistency of the analysis. The prediction models used in IAS-5100 are built on a large database created from extensive sampling, which further enhances the accuracy of the analysis results.
Thanks to its automatic functions, operators without specialized training can conduct testing efficiently. With an intuitive touchscreen interface, IAS-5100 only requires one button to complete one analysis in few minutes and can be used in trading markets, inside trucks, and fields.
Compact and Portable, Ready-to-Use Anywhere
- Small and light, the analyzer is designed for quick analysis in multiple scenarios and saves time and costs.
Innovative Blending & Side-Lighting Design
- The analyzer operates based on diffuse reflectance through a side-lighting structure and the blending feature helps collect more sample information and increases accuracy of the result.
User-Friendly Interface
- Intuitive touchscreen interface supports one-button quick analysis.
Multiple Size Options for Sample Cells
- A range of sample cells are available to suit different samples depending on their quantities and states.
Automatic Self-Maintenance
- Fully automated referencing and calibration functions make machine maintenance hassle-free
Stable and Durable
- Long-life halogen-tungsten lamp as a light source ensures durability and reduces maintenance costs.
- Wavelength Range : 950-1650nm
- Resolution : 12nm
- Spectroscopic Principle : Array MEMS Micromirror + Grating
- Detector : InGaAs Detector
- Baseline Noise : ≤0.0005AU
- Wavelength Repeatability : ≤0.05nm
- Wavelength Accuracy : ≤2nm
- Absorbance Repeatability : ≤0.0005AU
- Testing Time : ≤3min
- Data Interval : 1nm
Specification : Description
- Dimensions : L:278mm x W:337mm x H:292mm
- Weight : 5kg
- Display : 7-inch Touch Screen
- Operational Temperature : 5-45°C
- Operating Humidity : <RH75%
- Storage Temperature : -20-60°C
- Light Source : Halogen-Tungsten Lamp
- Power Supply : 24V/3A
- Power Consumption : 25W
- Integrated Operating System within the Device : Linux
