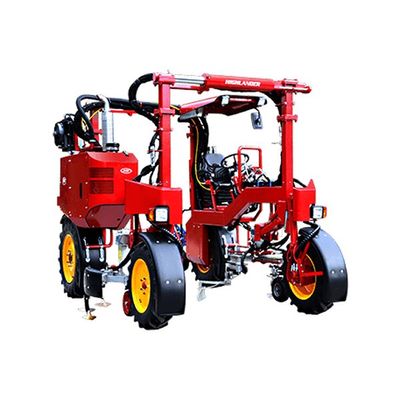

RATH Highlander - Model V70 - Portal Tool-carrier for Nurseries and Ornamental Tree
THE portal tool-carrier for nurseries, Christmas tree plantations and special cultures – thought out and designed to the smallest detail. For we have accurately studied and rigorously converted into reality the various requests and wishes that are possible with regard to a cultivation tractor of this category. The result: A cultivation tractor in state-of-the-art design that sets new standards in terms of innovation, flexibility and versatility.
Enjoying the overview seated in a comfortable and relaxed position. The driver enjoys excellent all-round vision; so that cultivation operations can be carried out accurately and with maximum working speed.
RATH tractors have been in operation worldwide for decades. A sturdy frame design combined with modern drive components guarantee maximum effectiveness and reliability.
Precision in intermediate axle attachment
HIGHLANDER V70 sets new standards for this attachment space. Visible from the front axle to under the rear axle. Seeing the result of one’s work increases accuracy and maximises output. No turning around or even tedious climbing off the machine is required for checking.
Technology without competition
Up to three metres ground clearance combined with a hydraulic trackwidth-adjustemnt a permanent and infinitely variable hydrostatic all-wheel drive, an 80 HP DEUTZ turbo diesel engine and hydraulic track adjustment make competitors look ordinary.
The tractor is easily and safely manoeuvred through joystick control. Because of the low operating weight even the most sensitive cultures can be worked thoroughly and carefully on the soil.
The low centre of gravity combined with a powerful all-wheel drive ensure tracking accurate to the millimetre off-road and in difficult ground conditions.
- Ornamental tree nurseries
- Fruit tree nurseries
- Christmas tree plantations
- Engine: 80 hp BF4L2011F 4zyl DEUTZ-Turbodiesel, oil-air cooled
- Hydrosatic power drive: full time 4 WD four-whell-drive with infinitely variable speed regulation from 0-25 km/h
- Track width: 1,5 - 2,5 m infinitely manually and hydraulically variable
- Ground clearance: 2,25 m, 2,55 m, 2,85 m, on request till 3 m
- Drivers Cab: best view around , with ventilation and heating and air-condition on request
- Standard dry weight: approx. 2.500 kg - 3.00 kg depending on size
- PTO: independent hydraulic-circuit with 55 l/min at maximum 250 bar = 22 KW power - other options on request
- Lifting devices: 2 - 3 seperate liftings
- between axles, with electrical controll by means of joystick
- Tires: front: 9.5R-20 8PR at rear: 12.4R-24 8 PR
