Model MERCAN100 - Poultry Computers

Type of Device: Poultry Controller

Device Size: 25,17,6 SM

Weight of Device: 2000 gram

Role Card Have / Have Not: HAVE

Weight of Role Card: 236 gram

Storage Temperature / Operating Temperature: -20 C to +60 C

Installation: Fixed installation

Operating Conditions: Continuous

Environmental Ratings: Standard, indoor at an altitude of less than 2000 meters with none condensing humidity.

Device Supply Voltage and Power: 220Vac

Temperature Sensor Inputs: NTC(10K)

Accuracy: +-%1

Sensor Break Protection: Upscale

Reading Frequency: 600 ms

Input Resistance: 1k

Outputs: Relay, 0-20 mA and 0-10 V

Analogue Output: 0-10v

Relay Output: Dry Contact

Electrical Life: 50.000 Operation-Full Load

Standard Communication: RS485

Optional Communication: ETHERNET

Display: LCD TOUCH - LATCH PANEL

Compliant Standards: CE, TSE

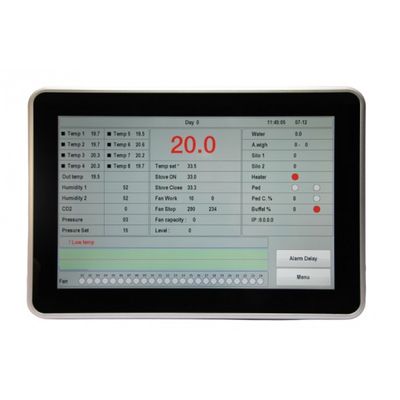

Easy operation with color touch screen

Minimum ventilation depending on the number of animals, fan capacity, daily requirement with daily program

External temperature, humidity-dependent ventilation

3 different ventilation index (Minimum, Transition, Tunnel)

2 different season index (Summer, Winter)

Speed controlled minimum or tunnel fan

Recording of historical failures with reporting

Recording the operating time of the historical heat and humidity heater

Controlling the pump according to temperature, outdoor temperature, humidity and time

Proportional curtain control as required

Ventilation according to the average of sensor 1, sensor 2, sensor 3, sensor 4,sensor 5, sensor 6, sensor 7, sensor 8 or all

2 different lighting program outputs

Easy setup with user-specific parameter recording

Ability to send messages to mobile phone

Remote computer connection with internet tracking and information update feature

8 internal temperature sensors

1 outdoor temperature sensor

2 humidity sensor

1 pressure sensor

1 ammonia sensor
