Model EI-WL2 - Poultry Feeding System
In recent years, poultry feeding system is transforming and upgrading as required by the growing concern about food safety and environmental protection. Mechanized poultry raising technology sets the inevitable trend of future development. It means building modern mechanized birdhouses with automated feeding equipment and environmental control equipment, and raise poultry by the use of scientific farming process. Compared with the traditional extensive poultry farming, the automatic poultry feeding system can significantly improve production efficiency.
To achieve feeding, drinking, lighting control automation within the poultry house is an important symbol of the mechanized poultry farming technology. People control the equipment and the equipment controls the birds. Mechanized birdhouse is equipped with automatic feeding line, automatic feed supply system, automatic water line, ventilation and cooling system, poultry house climate control system and other modern equipment. The machines automate the feeding process, greatly promote breed of birds, reduce labor intensity, and improve production efficiency.
Automatic Poultry feeding system
The system is an automatic feeder for birdhouse. EI automatic poultry feeding system comes in EI-WL1 / X system for raising breeder chickens (chickens for egg production), and EI-WL2 / X system for raising broiler chickens (chickens for meat production).
EI-WL2 / X Automatic Poultry Feeding System
The EI-WL2 / X automatic poultry feeding system provides complete poultry feeding solutions for raising broiler chickens, roosters, ducks, as well as some small livestock such as rabbits.
- Delivery capacity: 600 kg / hour.
- Tray: 14-window circular feed tray. The installation is by snap-fit so that you can assemble and disassemble the tray easily without any extra tools. It offers convenience for cleaning and sanitizing. There are scales for precise and quick adjustment. The tray is anti-aging, anti-UV, non-toxic, and durable.
- Screw conveyor: manufactured with high-quality spring steel, the screw conveyor is wear-resistant and corrosion-resistant. The length is less than 150 meters.
- Tube: hot galvanized, wear-resistant and corrosion-resistant.
- Feed shape requirement: grains in diameter not more than 4mm.
- Suitable for one-day-old chicks, no need to open the tray.
- To feed from chicks to chickens, you just need to simply lift the feed line, and the feed tray can be automatically converted.
- Reduce feed wastage.
- Automatic poultry feeding system saves labor: simply by rotating the drive winch, you can effortlessly have the trays on the entire feed line adjusted to the appropriate height for chickens’ pick-and-eat.
- Easy to clean, safe and reliable.

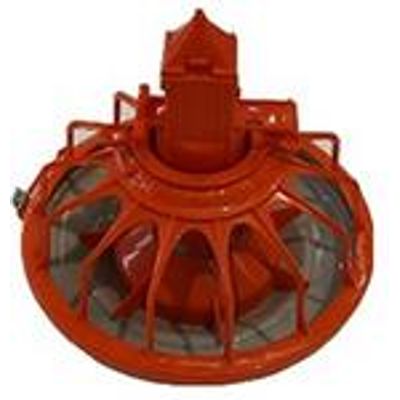

Feed Tray Features
- EI-WL2 / 14 feed tray provides 14 feed windows for chickens growing from one-day-old into adult ones.
- There are four windows set at the lower tray rack to collect falling feed.
- The height of the feed tray can be precisely adjusted using the adjustment sleeve.
- You can have the quantity of feed supply fully under control using the feed switch.
- Double trough design is intended to allow chicks to go in and out freely for feeding, and thus reducing feed wastage.
- The shell and tray are connected by turn-lock clasp, so assembly and disassembly are easy and safe.
- Smooth surface, easy to clean, no dead ends.
