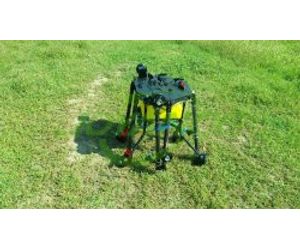

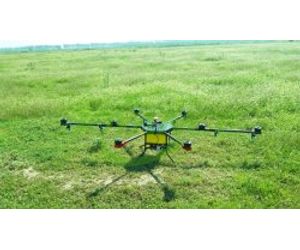

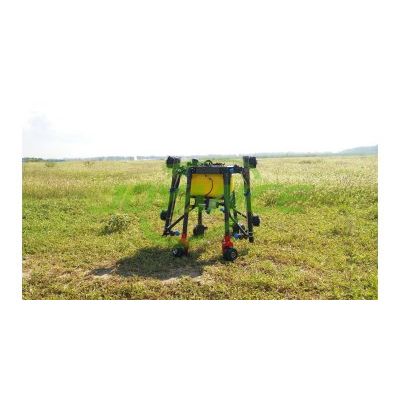

Joyance - Model 15L - Precision Agriculture Pesticide Spraying Drone
Security: protect farmers away from pesticide harm, to prevent poisoning and heatstroke incidents; High efficiency: can spray 50-100 acres per day, 30 times more than traditional spraying method; Environment protection: can spray pesticides with fixed position and fixed orientation, reducing the pollution to water and soil; Pesticides saving: high degree of atomization, the chemical fog can be pressed to all levels of the crop, can save more than 30% of pesticides; Water saving: can adopt ultra low volume spraying technology, water consumption is only 10% of traditional spraying method; Low cost: the cost is only 1/30 of traditional spraying method; Wide range of applications: not influenced by terrain and crop height, remote control, low altitudes flight, no harm to crop; Easy to use and maintenance: long life to use, low maintenance cost, easy to replace wearing parts.
- Ready to fly, easy to use;
- U-blox m8n GPS stand, much more accurate;
- 3K Carbon fiber frame and propellers, strong and stable;
- Umbrella folding frame, easy to transport;
- Aviation aluminum joint, light and durable;
- Quick release propeller, easy to disassemble;
- Waterproof sealed parts, away from water and pesticide;
- Big spraying width, high efficiency;
- Each nozzle is under propeller, the chemical fog can be directly pressed to all levels of the crop by the strong air flow generated by the propellers, so more effective.
- More motors to bear the payload, can continuously work for long time.
- Autonomous intelligent flight with waypoint (optional);
- Fail-safe, low voltage, no signal, return automatically.
- Technical Parameters: JT Sprayer15 (6 Axles - 8 Rotors)
- Pesticide Tank: 15L
- Self Weight: 15kg
- Max Take-off Weight: 40kg
- Flying Time: 10~15min
- Flying Radius: 0~1000m
- Flying Height: 0~200m
- Flying Speed: 0~12m/s
- Work Temperature: -10~70°C
- Work Humidity: 0~90%
- Spray Speed: 0~8m/s
- Spray Width/Nozzle No.: >5~7m / 6 Nozzles
- Spray Flow: 0.2~2L/min
- Spray Efficiency: 2000~3500sq.m/min
- Flying Downward Airflow: 4~15m/s
- Wind Resistance: 10m/s
- Machine Size:
- Spread Size: W2.65m x L1.55m x H0.35m
- Folded Size: W0.95m x L0.7m x H0.55m
- Power System:
- Motor: Brushless
- Propeller: Carbon Fiber
- ESC: Rapid Throttle Response
- Flight Control: V7.1
- Remote Controller: Tutaba T8FG
- Battery / Quantity: 6S 16000mAh 15C / 2pcs
- Adapter + Charger: Synchronous balance charger
- Packing Case: Aluminum Case
- Toolkit: Maintenance/Repair Tools
Optional:
- Fixed Camera + Image Transmission: 600mw
- OSD: OSD
- Screen: 7"
- Ground Control Station Software + Radio Telemetry: V7.1A
