Stanhay - Model 820 -Precision Belt Drill for Seed Planting
Redesigned in a lightweight aluminium frame for 2022. The highly versatile 820 Handpush is designed for planting small areas and quantities of seed at a time. The large diameter rear cage wheel and ergonomic handles makes it easy to push. The four speed pulley drive gives four seed spacings per seed belt.
- Lightweight Aluminium design at only 26Kg total weight
- 4 speed pulley drive
- 5mm depth adjustment increments via coulter stem between 0-50mm large diameter rear cage wheel
- Adjustable height handlebars
- 4 litre seed hopper
- Carrying Handle
The metering unit accurately places seed in the ground with the minimum of damage as every moving part is rubber covered. Seeds in the hopper fall past the choke A which regulates the quantity of seed in the chamber. The seed belt B is rotated clockwise by the drive wheel C while the repeller wheel D rotates anticlockwise to remove excess seed away from the holes in the belt only allowing the required amount to drop through at the end of the spring base E. The seed drop into the bottom of the furrow is only 25mm minimising bounce or roll of the seeds.
- Planter Type: Belt
- Seed Type: NATURAL + PELLETED

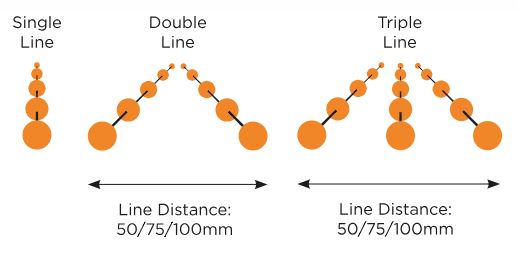

- Multiline Capacity: 1-3 Line
- Hopper Capacity (L): 4L
- Min/Max Seed Size (mm): 1-15mm
- Min/Max Number of Rows per Machine: 1
- Minimum Row Spacing: N/A
- Approx Row Unit Weight (kg): 26kg
- Row Unit Length: 1130mm (excluding handles)
- Depth Control Range: Incremental 5mm Steps
- Coverer Options: Drag
- Seed Press Wheels Available: NO
- Row Unit Down Force Adjustment: NO
- Drive System: Unit Rear Wheel
- Landwheel Tyres: ---
- PTO Fan: ---
- Linkage Category: None
- Clutch: None
