Einböck - Model CHOPSTAR-TWIN - Precision Row-Crop Cultivator

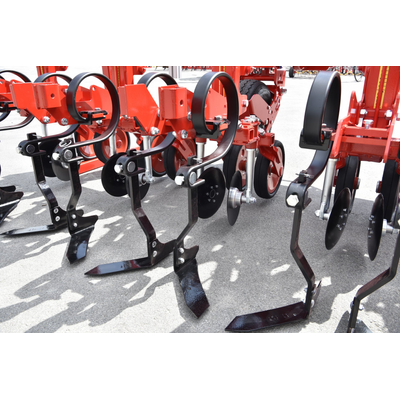

The CHOPSTAR-TWIN precision hoe was developed for precise hoeing above the row. The hoeing parallelogram does not work between the rows, but is mounted directly above the row. This allows a very narrow hoeing belt, which makes it possible to hoe young crops very early and narrow at the same time. This is achieved by two cutting disc adjustable in angle in combination with following angle knives: two Farmflex wheels running close to the crop row ensure an exact working depth of the hoeing elements. The CHOPSTAR-TWIN, in combination with the camera steering system ROW-GUARD, is perfectly suited as a precision hoe for special crops, cereals, soybeans, beets, corn, vegetables, herbs, etc.
- Hoeing above the row
- Narrow hoeing strip
- Early hoeing
- Disruption of capillary action
- Breaking of crusts
- Angle knives with vertical cutting discs
The concept of the CHOPSTAR row hoes is its variability and the many possibilities of individual tools for various crops. The same strong and solid frame is used for all row hoes. Almost any row hoe can also be equipped with the automatic camera steering system ROW-GUARD.
To our standard hoeing technology
- Depending on the specification and the configuration, as well as the width of the sweeps, the row spacing can be adjusted from 35 cm / 13.80"
- Lower links guided on both sides
- Automatic upper link steering with upper link spindle and gauge wheels
- Adjustable retraction support on each parallelogram
- Two adjustable Farmflex-feeler wheels, bearing mounted, Ø 300 mm / 11.80" / 65 mm / 2.56" wide per parallelgoram
- Robust, adjustable parallelogram
- Vertical cutting discs Ø 220 mm / 8.66" adjustable in angle and in distance to each other
- Vibrotine 40x12 with holder 35x11 and angle knive 120 mm / 4.70" incl. guiding plate
- Hoeing parallelogram mounted above the crop row
