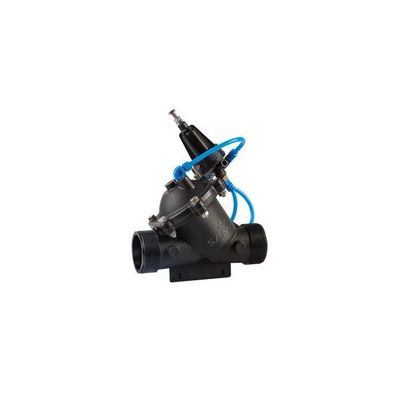

SAM - Model 2.5 Inch PRV -Pressure Release Valves
Designed Pressure: Upto 10 Kg/Sq.cm. Operting Pressure Range: 1.7 to 8Kg/sq.cm. Minimum Sealing Pressure: 0.7 Kg/Sq.cm. Temperature Range: Water upto 60° C.
Most popular related searches
- Inlet Thread: 2 ½" BSP Male Thread.
- Outlet Thread: 2 ½” BSP Male Thread.
- High quality engineered polymers used.
- Wide Pressure Range.
- Chemical & Cavitation Resistance.
- Normaly closed type.
- Pressure Release Valves are widely used in the irrigation system.
- Used as a safety valve.
- Designed to protect pressurized system.
- Can be installed near motor/pump to relieve sudden back pressure.
- Body, Cover: 30% Glass Filled Nylon.
- Diaphragm: NR with Nylon Fabric Reinforced.
- Seal: Natural Rubber.
- Spring: Stainless Steel.
- Cover Bolts: Stainless Steel.
- Tubing & Fitting:Plastic.
- PRV Pilot Unit:Special Pilot.
- Weather Resistant, Encapsulated Design.
