Quick & easy to install. Panels are delivered to site ready for immediate use.
High speed erection ensures substantial savings in labour costs.
Concrete panels can be erected regardless of the weather making them a effective solution throughout the year.
No Foundation Required
Cost effective solution with the reduced requirement for on site labour providong substantial savings.
Flexibility as prestressed concrete panels can be re-sited creating an future proof solution allowing buildings to be adapted in the future, unlike traditional block work.
Easy Alignment and space for sealer to create a water proof bond -enhanced through the prestressed concrete panels tongue & groove joint design with chamfered ends.
Each concrete panel has 2 sockets cast into the tongue to facilitate a threaded loop when installing.
High strength robust solution – prestressed concrete panels have a much higher resistance to loading and cracking than ordinary reinforced panels. Making it easier for prestressed panels to absorb minor accidental damage.
Double or single load bearing concrete panel options available depending on application required.
Low maintenance as prestressed concrete panels have a smooth impervious surface that are quickly and easily cleaned.
Higher Degree of Fire Resistance than most other building materials.
Tax Relief may be available on prestressed wall concrete panels. Please consult your accountant.
Versatility – we manufacture a wide range of prestressed concrete panels with various heights, depths and lengths depending on the application.
Our concrete mix does not contain limestone aggregate, conforming to requirements stipulated by some planning applications.
It is easy to add extra height using Wall concrete panels, provided there is sufficient scope courtesy of the RSJs that are already in place. However, when taking this approach it is crucially important to check that the RSJs and the bottom panels can take the extra weight and pressure that will be generated.
Made to measure – concrete panels are manufactured in standard lengths, however they can also be manufactured to order. Concrete panels are individually labelled allowing for easy identification, aiding high speed erection.
Wall concrete panels are manufactured to optimum standards with the highest quality raw materials. The 50N concrete mix, produced in a modern state-of-the-art batching plant, ensuring strong robust walls suitable for a variety of applications.
Concrete panels can be fitted to the RSJ/Beam in 3 ways:
1) Bolted to the inside face
2) Slotted in between
3) Bolted to the outside face

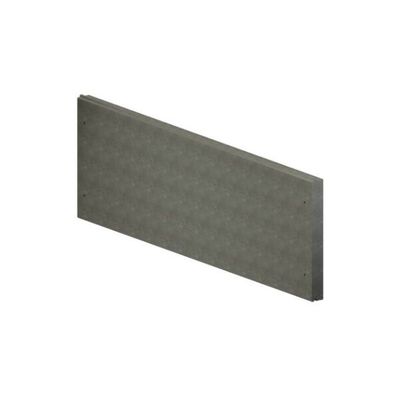

Prestressed Wall Concrete Panels

Concrete Wall Panels

Features & Specifications

Applications
