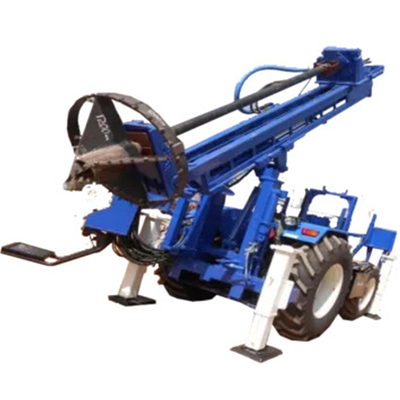

Prime - Model PPR-30 -Tractor Mounted Drill Rig
FromPrime Rigs Ltd
PRL Tractor Mounted Drill Rig Model PPR-30 is primarily designed for Unconsolidated / Alluvial / Soft Soil applications as construction use. PRL PPR- 30 is among the best and most sought after tractor mounted drilling rig in the market. It is intended for use in Construction purposes. PRL PPR-30 is designed for 100-609mm (4”-24”) with Rotary operation
Most popular related searches
- Rotary Drilling:
- Hole Diameter: 4”(100mm) – 24” (609mm )
- Depth: 100 Feet / 30meters
- Drill Rod Length: 3 ½” x 10 feet (3.0 meter)
- Tractor: New Holland Make
- Model: 7500 (4 Wheel Drive)
- Capacity: 75hp @ 2300 RPM.
- Prime Mover: Tractor Engine using PTO Gear box
- Application:: Unconsolidated / Alluvial / Soft Soil
- Mast: Sturdy structural channel mast structure electrically welded.
- Mast Overall Length: 5,500mm
- Rotary Head Travel: 3,500mm
- Feed System:: Feed & Hoist using pulley, wire rope and hydraulic cylinder.
- Feed Cylinder Size: 100 mm
- Stroke: 1750 mm
- Max. Pull up force: 7,000kg-f
- Max. Pull down force: 4,500kg-f
- Reeving Ratio: 1:2
- Maximum Pull up speed: 30m/min
- Rotary Head:
- Spindle Speed: 0 – 50rpm
- Torque: 420 kg – m
- Hydraulic System:
- Maximum Working Pressure: 180 kg/cm2
- Capacity: 350 Liters
- Mud Pump:
- Flow rate: 1500 LPM
- Pressure: 10kg/cm2
- Levelling Stabilizers:
- Cylinder Size: 100 mm
- Stroke: 610 mm
- Mast Rising Cylinder:
- Cylinder Size: 125 mm
- Stroke: 700 mm
- Breakout Wrench:
- Cylinder Bore: 70 mm
- Stroke: 200mm
