Dairypower - Pro-Clean Ratchet Scraper

Hydraulic System for Cattle, Sheep, Hog and Poultry Houses

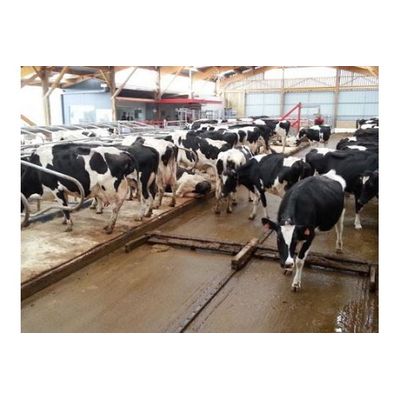

The Dairypower heavy-duty robust scraper blade is hot-dip galvanized with a low and smooth profile, designed to prevent animal injuries. The scraper blade is driven by a patented double spring-loaded tongue, which keeps the rail clean, preventing a build-up of manure and allowing the scraper to operate in extreme weather conditions. Our unfaltering commitment to on-going research and development has seen the hydraulic system successfully installed for cattle, sheep, hog and poultry houses. The system has also been installed in sewage treatment plants, abattoirs and other industrial projects.

Ideal for:

• Any climate
• Old or new barns
• Cattle, hog & poultry farms, abattoirs and sewage plants
• Easy installation

Pro-Clean Powerpack

The Hydraulic Powerpack is designed for a long and trouble-free life with low noise level. The Hydraulic Pump is protected by a suction and return system, helping to extend the lifetime of all components. The smooth change-over valve means easy operation with gentle turns, leaving the animals undisturbed.

Pro-Clean Control Box

The Dairypower Pro-Clean Ratchet Scraper is controlled by a user friendly electronic control box and conforms to all International Safety Standards. The labour-saving scraper has its own timer and switch for and individual customization, passages can be programmed to run individually or as one sequence. It has a safety feature which automatically switches off a scraper when an animal becomes immobilized and will not affect the other scrapers on the system. Unique features include: Calving Mode, Testing Mode, Run & Stop Mode, Backing Gate Channel, Remote Control, Data Recording.

Pro-Clean Quarto-Folded Rail

The rail is a heavy duty cold rolled rail. This rail is quarto-folded which gives it double the strength of a standard two folded rail with no welds. Its unique curved design prevents animal injuries.

Pro-Clean Patented Internal Ram

Dairypower has developed and patented an Internal Ram System. The cylinder is installed on the existing passage floor and is protected by a stainless steel casing which the rail runs on. All electrical parts are installed overhead away from the manure. This system avoids any pre-installation work.

Pro-Clean Standard External Ram Box

This Ram Box consists of cushioned cylinder, a 24V DC Solenoid, a Magnetic Park Switch, a Glanded Junction Box and a Galvanized Checker Plate Cover. Dimensions: 60 x 30 x 10 cm Cylinder: 45 x 25 x 500 mm

Wide Range of Scraper Blades

There is a range of Dairypower scraper blades to suit all types of passageways:

• Standard Straight Blade Heavy Duty Scraper
• Universal Scraper (The Blades are hinged so the Scraper can clean both flat and sloping floors, with the manure running inwards)
• Double Blade Scraper (for very long passageways)
• Delta ‘V’ Scraper Blade (for passages with large difference in width)
• Hog Scraper (special low scraper to allow the animals to walk over)
• Slat Scraper (special locked blades, with outer rubber cleaning wings)
• Silage Scraper (scraper pushes silage to head-feed and closes on return journey to allow tractor access)

There is a range of Dairypower Pro-Clean accessories and other products available:

• Lifting Slat
• All Clear Unit
• Hydra-Mat
• Cattle-Clean Cow Brush
