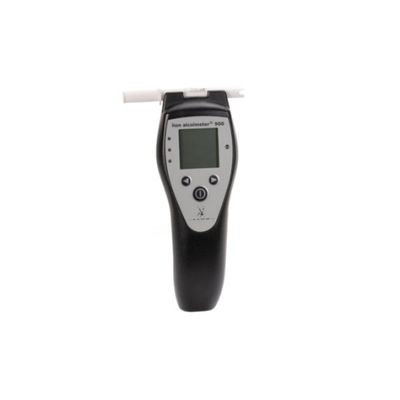

Lion Alcolmeter - Model 900 - Professional Breath Alcohol Analysis Instruments
The lion alcolmeter 900 is the latest in a long line of professional breath alcohol analysis instruments that has been designed, developed and manufactured by Lion Laboratories Ltd. The instrument conforms to EN15964, IP54 and Evidential Breath Testing Devices (EBTs) DOT requirements. The lion alcolmeter 900 offers a sleek new design and optional extras such as, Bluetooth and integrated GPS. The instrument also features a heated sample port for more accurate readings in colder climates. A dedicated mouthpiece design with an illuminated port ensures easy fitting in any situation.
This latest lion alcolmeter® 900 is designed and built for accurate and repeatable breath alcohol screening. It uses the latest technology to seamlessly deliver results in the most effective ways. It also features optional extras such as built in Bluetooth, which enables efficient data transfer and cordless printing, plus connectivity to the Lion AlcoHub App. Pairing is possible with Android portable devices, and has been tested to withstand EMC disruption from 5G technology.
The incorporation of an Integrated GPS (optional extra), allows for location fixes for data records, and also displays sample positions on a map when paired with the AlcoHub App. All location data is also tagged with the time a measurement was taken for a full audit trail.
This instrument delivers highly accurate and fast readings through use of the latest generation of Lion fuel cell sensors.
Conforming to EN15964 and IP54 the lion alcolmeter® 900 has a built in heater ensuring performance at sub zero temperatures.
The instrument should be checked with an alcohol standard at regular intervals, and recalibrated if required. The user may do this using an AlcoCal® product; or, alternatively, contact Lion to arrange for a calibration at the Lion Laboratories Ltd facility or contact your country distributor for local support.
- Instrument Dimensions : 210mm x 75mm x 45mm
- Weight : 325g (including batteries)
- Approvals : EN15964 & IP54 Approved
- Sensor Type : Electrochemical Fuel Cell
- Measuring range : 0.0 to 3.0 mg/L BrAC
- Operating temperature range : -10°C to +50°C
- Power Supply : 4 x new AA cells give up to 8,000 breath tests
- Calibration Adjustment : 12 months calibration stability approved. calibration check once a month, calibration every 6 months.
- Calibration Standard : Either a dry-gas or a breath alcohol liquid simulator
- Operating Humidity Range : 20 to 95%, non-condensing
- Memory : Up to 10,000 test records
- Warranty : 12 months, parts and labour
- Bluetooth - Optional Extra : For easy connection with bluetooth compatible devices
- AlcoHub App - Optional Extra : Cloud based instrument data management application
- GPS - Optional Extra : Samples can be automatically location tagged for use with the AlcoHub app
