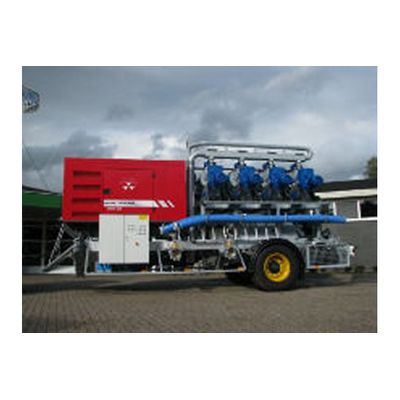

Slootsmid - Model SMS 1-4 - Profi Mobile Manure Separator
The SMS 1-4 is a professional high-capacity mobile manure separator and extremely durable, yet cost-effective to operate. It was designed specially for agricultural contractors. It lends itself to combinations of 1, 2, 3 or 4 separators. If several separators are used a generator is added for supplying the power. The amount of diesel used by the generator is particularly economical. The design offers plenty of storage space for suction hoses, discharge hoses and various other accessories.
A 600-litre liquid fraction tank fitted with a centrifugal pump takes care of the discharge. The solid fraction is discharged with the use of two augers. The auger housing, which can be rotated 180 degrees and adjusted up to 4 metres in height, is fully sealed for safety. Another advantage of sealing the auger housing is that it prevents solid fraction from being blown about. This means a cleaner yard. The complete unit is installed on a strong trailer fitted with large wheels and hydraulic brakes. The machine can be driven at considerable speed and is extremely stable when towed behind a tractor. The chassis is fully galvanised which guarantees a long life. Expanding the machine’s capacity is a simple matter.
- Type of separator FAN 3.2 - 780
- Type of intake Worm or lobe pump
- Liquid fraction discharge Centrifugal or lobe pump
- Set-up Mobile
- Slootsmid electrical precutter filter
- Various options possible. For further information, contact us.
- Slurry volume reduced to as low as 25%.
- The manure (both liquid and solid) can be reused on the farm or be sold off.
- Solid matter can be used for stall bedding (bio-comfort bedding)
