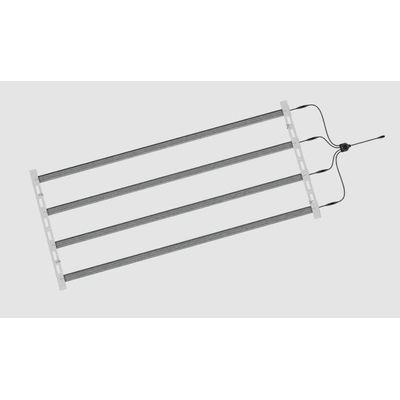

IQ Lighting - Model RAK -PROP LED Light
The RAK fixture design allows for quality light output in vertical and low mounting propagation applications. This powerful, full-spectrum light is intended for experienced growers for the vegetative stage of growth.
Driver
World class LED driver. Input options Auto Sensing 90V-305V and 245V-528V.
Control
0-10V (Option) Fixture is equipped with an external RJ14 cable and allows for daisy chained installation of up to 200 fixtures per controller (100 fixtures per controller port).
Dimming
RAK 4 is dimmable in 400W, 300W, 200W, and 100W.
Spectrum
Our Broad Spectra offers light emission across the PAR 400-700nm wavelength range. We balance efficiency with quality of light to achieve the desired plant response and work environment.
INPUT POWER: 400W
EFFICACY: 2.10 μmol/J
PPF: 210 / 840 μmol/s
INPUT VOLTAGE: 120V - 277V
MOUNTING: ≥ 6” Above Canopy
THERMAL: Passive
LIFE: 50,000 hrs
POWER FACTOR: > 90%
IP RATING: IP66
CERTIFICATION: UL8800, UL 1598 Wet
WARRANTY: 5 Year Standard
AMBIET TEMP: -10°C / 40°C
STORAGE: -40°C / 85°C
ACCESSORY: 6’ Extension Power Cord
FIXTURE LENGTH: 45.3”
FIXTURE WIDTH: 20.9”
FIXTURE HEIGHT: 2”
