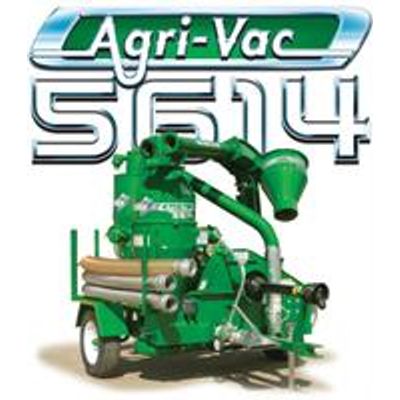

Walinga - Model 5614 -PTO Grain Vacs
FromWalinga Inc.
Walinga`s smallest most portable PTO 5614 Agri-Vac unit. Packing a big punch, with transfer rates between 1900-2500 Bu/Hour, it`s hydraulics rely upon tractor hook-up. The unit includes a smaller Rhino liner in the receiver tank and boom cyclone and boom rotation is accomplished manually.
Most popular related searches
PTO grain vacuum
grain vacuum
pneumatic grain conveyor
grain conveyor system
farming implement
farm implement
grain conveyor
grain pneumatic conveying
shelling machine
grain pneumatic
- Height 92 in (234 cm)
- Width 92 in (234 cm)
- Length 103 in (261 cm)
- Weight 2352 lbs (1069 kg)
- Discharge Height 13 ft 8 in minimum (4.49 m)
- HP Required 70-85 HP
- PTO Speed 1000 RPM
- Line Size 5 in (125 mm)
- Tires Two standard farm implement
- Wheels 15 in (38 cm), 5 stud
- Blower #614 Walinga SRT (Sound Reduction Type), Super Hardened, Positive Displacement Blower
- Airlock #1314 Cast iron shell, precision machined housing, 10 vane rotor, Hardox steel tips, hydraulically driven, reversible rotation
- Drive Tongue mounted drive shaft with V-type 5 groove sheaves & belts
- Hydraulics Hoses & quick couplings
- Open/closed centre system
- Receiver 24 in diameter(61 cm) one piece, single inlet
- Precleaner 20" dia. (51 cm)
- Safety Vacuum/Pressure relief valves
- Barley 2500 Bu / Hour, 64 Tonnes Per Hour
- Corn 2500 Bu / Hour, 64 Tonnes Per Hour
- Wheat 2200 Bu / Hour, 58 Tonnes Per Hour
- Beans 1900 Bu / Hour, 51 Tonnes Per Hour
