Walinga - Model 5614 DLX -PTO Grain Vacs

FromWalinga Inc.

SHARE

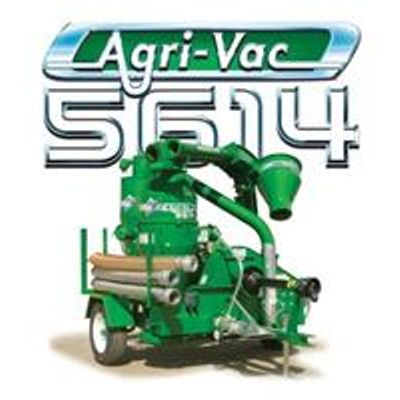

Walinga`s most portable PTO vac unit, the 5614 DLX (Deluxe) Agri-Vac unit transfers bulk at speeds of between 1900-2500 Bu/Hour. The feature packed 5614 DLX Agri-Vac unit includes a fully Rhino lined receiver tank and boom cyclone. DLX units also ship with a self contained hydraulic system which includes the addition of a hydraulically powered gear drive for boom rotation.

Most popular related searches

PTO grain vacuum

pneumatic grain conveyor

grain conveyor system

farming implement

grain pneumatic conveying

shelling machine

grain pneumatic

Height 92 in (234 cm)
Width 92 in (234 cm)
Length 103 in (261 cm)
Weight 2552 lbs (1160 kg)
Discharge Height 13 ft 8 in minimum (4.49 m)
HP Required 70-85 HP
PTO Speed 1000 RPM
Line Size 5 in (125 mm)
Tires Two standard farm implement
Wheels 15 in (38 cm), 5 stud
Blower #614 Walinga SRT (Sound Reduction Type), Super Hardened, Positive Displacement Blower
Airlock #1314 Cast iron shell, precision machined housing, 10 vane rotor, Hardox steel tips, hydraulically driven, reversible rotation
Drive Tongue mounted drive shaft with V-type 5 groove sheaves & belts
Hydraulics Self Contained
Receiver 24 in diameter (61 cm) two piece, dual inlets
Precleaner 20" dia. (51 cm)
Safety Vacuum/Pressure relief valves

Barley 2500 Bu / Hour, 64 Tonnes Per Hour
Corn 2500 Bu / Hour, 64 Tonnes Per Hour
Wheat 2200 Bu / Hour, 58 Tonnes Per Hour
Beans 1900 Bu / Hour, 51 Tonnes Per Hour
