Walinga - Model 6614 - PTO Grain Vacs

Walinga - Model 6614 -PTO Grain Vacs

FromWalinga Inc.

SHARE

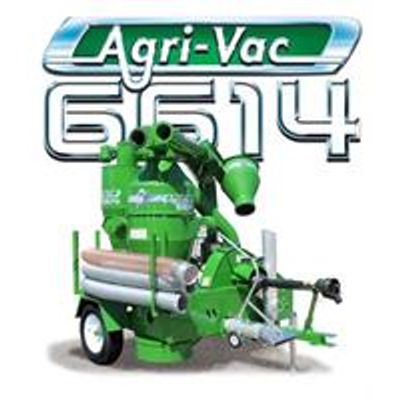

One of Walinga`s mid-range portable PTO vac units, the popular 6614 Agri-Vac unit transfers bulk at speeds of between 2800-4000 Bu/Hour. The 6614 Agri-Vac hydraulics rely upon tractor hook-up. The unit includes a smaller Rhino liner in the receiver tank and boom cyclone with boom rotation accomplished manually.

Most popular related searches

PTO grain vacuum

pneumatic grain conveyor

grain conveyor system

farming implement

grain pneumatic conveying

shelling machine

grain pneumatic

Height 95 in (241 cm)
Width 92 in (234 cm)
Length 105 in (267 cm)
Weight 2814 lbs (1279 kg)
Discharge Height 13 ft 8 in minimum (4.49 m)
HP Required 110-130 HP
PTO Speed 1000 RPM
Line Size 5 in (125 mm) & 6 in (150 mm)
Tires Two standard farm implement
Wheels 15 in (38 cm), 5 stud
Blower #614 Walinga SRT (Sound Reduction Type), Super Hardened, Positive Displacement Blower
Airlock #1618 Cast iron shell, precision machined housing, 10 vane rotor, Hardox steel tips, hydraulically driven, reversible rotation
Drive Tongue mounted drive shaft with V-type 5 groove sheaves & belts
Hydraulics Hoses & quick couplings
Open/closed centre system
Receiver 28 in diameter(71 cm) one piece, single inlet
Precleaner 24" dia. (61 cm)
Safety Vacuum/Pressure relief valves

Barley 4000 Bu / Hour, 85 Tonnes Per Hour
Corn 3600 Bu / Hour, 92 Tonnes Per Hour
Wheat 3200 Bu / Hour, 84 Tonnes Per Hour
Beans 2800 Bu / Hour, 75 Tonnes Per Hour
