Walinga Inc.

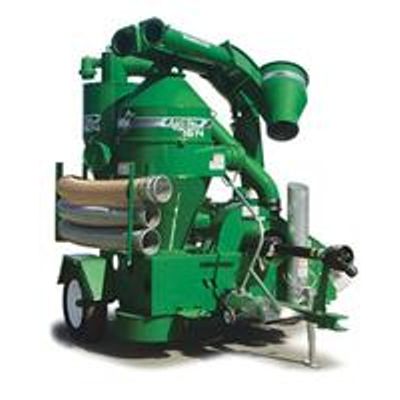

Walinga - Model 7614 DLX -PTO Grain Vacs
FromWalinga Inc.
Walinga`s upper mid-range portable PTO vac unit, the 7614 DLX (Deluxe) Agri-Vac unit transfers bulk at speeds of between 4800-5500 Bu/Hour. The feature packed 7614 DLX Agri-Vac unit includes a fully Rhino lined receiver tank and boom cyclone. DLX units also ship with a self contained hydraulic system which includes the addition of a hydraulically powered gear drive for boom rotation.
Most popular related searches
PTO grain vacuum
grain vacuum
pneumatic grain conveyor
grain conveyor system
farming implement
farm implement
grain conveyor
grain pneumatic conveying
shelling machine
grain pneumatic
- Height 96 in (244 cm)
- Width 92 in (234 cm)
- Length 107 in (272 cm)
- Weight 3302 lbs (1498 kg)
- Discharge Height 13 ft 8 in minimum (4.16 m)
- HP Required 130 - 150 HP
- PTO Speed 1000 RPM
- Line Size 6 in (152 mm) & 7 in (175 mm)
- Tires Two standard farm implement
- Wheels 15 in (38 cm), 5 stud
- Blower #614 Walinga SRT (Sound Reduction Type), Super Hardened, Positive Displacement Blower
- Airlock #2018 Cast iron shell, precision machined housing, 10 vane rotor, Hardox steel tips, hydraulically driven, reversible rotation
- Drive Tongue mounted drive shaft with V-type 5 groove sheaves & belts
- Hydraulics Self Contained
- Receiver 32 in diameter (81 cm) two piece, dual inlets
- Precleaner 24" dia. (61 cm)
- Safety Vacuum/Pressure relief valves
- Barley 5500 Bu / Hour, 140 Tonnes Per Hour
- Corn 5500 Bu / Hour, 140 Tonnes Per Hour
- Wheat 5000 Bu / Hour, 136 Tonnes Per Hour
- Beans 4800 Bu / Hour, 131 Tonnes Per Hour
