PTO Mixer

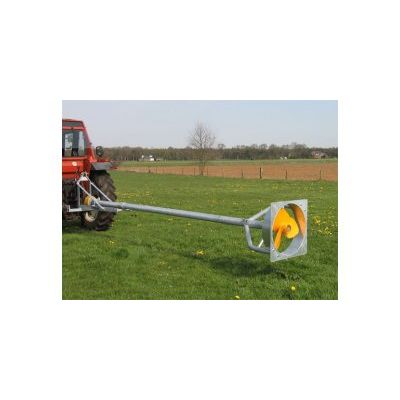

The Veenhuis slurry mixer is available in a length of 4, 5, or 6 meters and can be fitted with a 50 or 60 mm paddle. The mixers combine low traction with high paddle propulsion. This enables the mixer to blend large quantities of slurry into a homogenous substance: quickly and without any problem. For optimum results, a reversing box can be fitted to the main axle, allowing either a pulling or slowing direction.
The mixer can be coupled to the tractor by a 3-point linkage and quickly and easily lends itself to positioning and repositioning by one person. A guiding frame is available for guiding the mixer in the slurry cellar. An accompanying frame in the cellar (bricked or poured in) guarantees a stable construction. Because the mixer requires a minimum of power it is also suitable for light tractors.
The mixer is fully galvanized and the paddle is sprayed in dual-component lacquer. This makes the mixer resistant to the effects of slurry – guaranteeing long life and minimizing maintenance costs. The excellent price-quality ratio makes the Veenhuis slurry mixer the ideal mixer for slurry cellars.
-
Strong bearing design (3 bearing stages)
-
Completely galvanised
-
Available with vaneblade diameter ø 50 cm or ø 60 cm
-
Available in 4, 5 or 6 mtr length
-
Delivered without pto-shaft
-
Supporting u-frame for basement wall
-
3-point frame for tractor linkage
-
Swinging point for 3-point frame
-
Reversing gear box
Frames
-
Brick-wall frame 60x60 cm; for vane ø 50 cm
-
Brick-wall frame 70x70 cm; for vane ø 60 cm
-
Concrete-wall frame 60x60 cm; for vane ø 50 cm (pour concreted)
-
Concrete-wall frame 70x70 cm; for vane ø 60 cm (pour concreted)
Guiding frames
-
Guiding frame 60x400 cm; for vane ø 50 cm, mixerlength 4 mtr
-
Guiding frame 60x500 cm; for vane ø 50 cm, mixerlength 5 mtr
-
Guiding frame 70x400 cm; for vane ø 60 cm, mixerlength 4 mtr
-
Guiding frame 70x500 cm; for vane ø 60 cm, mixerlength 5 mtr
-
Guiding frame 70x600 cm; for vane ø 60 cm, mixerlength 6 mtr
