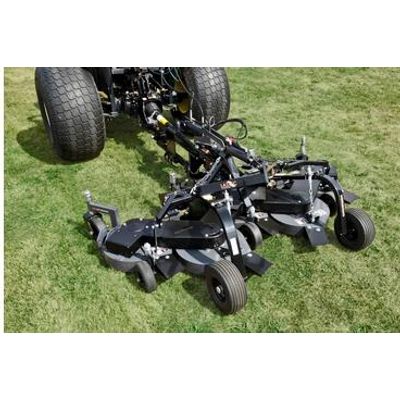

Lastec - Model XR500T - Pull Behind Finish Mower with Draw Bar Mount

SHARE

Combining a 96” width of cut with five 21” flex decks, the XR500T finish mower cuts with the accuracy of five small push mowers at the speed and production of an 96" wide area mower. Built in the USA, the XR500T pull behind mower is tens of thousands of dollars less compared to a self-contained mower and fits the production needs of golf courses, sports turf professionals, and commercial landscapers.

Most popular related searches

finishing mower

commercial landscape

landscape product

mower combination

96" Flex Deck Pull Behind Finish Mower with Draw Bar Mount

96" cutting width
Draw-bar mount provides precision maneuverability and turning radius, versus standard 3-point hitch hookup
Five 21" flex decks with 360° of float and up to 24° of total up/down motion
No-tool deck height adjustment from 1-3/4" to 4-3/4"
All Deck Wheels are Semi-Solid, to Eliminate Flat Tires

The XR500T pull behind finish mower includes five independently flexing decks with up to 24° of total up/down motion and 360° of float for superior cut quality in even the most challenging contours and valleys. In addition, Lastec’s patented belt-driven decks require minimal maintenance.

Perfect the Art of Mowing today with the XR500T finish mower that minimizes investment and maintenance while maximizing cut quality, productivity, and performance.

Premium Cut Quality

Lastec flexing decks provide a premium quality of cut throughout the entire width of cutfrom wing to wing not found anywhere else in the industry. Lastec individual flexing decks cut areas that normally require hand trimming, provide a lower cut without scalping, mow through trenches and valleys in a single pass, and approach contours from any angle without scalping, missing grass, or damaging turf.

Every Lastec mower features three, five, or seven 21” or 25” independently flexing decks that include up to 24° of total up/down motion for the premium cut quality of several small push mowers in even the most challenging contours and valleys. In addition, Lastec’s center decks include a pivot in the center capable of up to 3° of up/down motion.

XR500T 96" WIDTH OF CUT
029288 Mulch Baffle Kit (mulch blades not included)
P128 High-Lift Blade (Standard)
P322 Gator Mulching Blade
P246 Low-Lift Blade
063246 Ultra Low-Lift Blade
048898 Anti-Scalp Blade Disc
076894 Anti-Scalp Kit

Tractor Requirements:

30hp (22.37 kw) & Category 1, with Draw-Bar mount
Tractor PTO Speed: 540 RPM
Transport Width: 96” (243.8 cm)
Deck Height Range: 1-3/4" to 4-3/4" (44.45 mm - 120.65 mm)
Deck Configuration: Five 21” (533.4 mm) 4” (101.6 mm) deep, fully articulating
Warranty: 2 years parts/1 year labor/ limited lifetime on urethane bushings & bushing hardware

Dimensions

Weight: 982 lbs (445.4 kg)
Length 108" (2743.2mm)
Distance Behind Tractor 7.50" (2.286mm)
Width (mowing) 114" (2895.6mm)
Width (transport)102" (2590.8mm)

Cutting Deck System

Cutting Width: 96” (335.28 cm)
Blades 21"
Deck Segments 5
Height of Cut Range 1-3/4" to 4-3/4" (44.45 mm - 120.65 mm)
Height Adjustment No tools required
Acres Per Hour 7.27 (assumes 10% overlap, no stops, and average speed of 8mph)
Transport Lift Type n/a
Deck Castor Wheels 9 (No Flats)
Deck Thickness 3/16 7ga.
Deck Leading Edge1/2"x1/4"
Blade Length 21" (53.3cm)
Articulation p/m 12 degrees
Height of Cut Change- Timing 5 min.
Height of Cut Change- Tools required None
Height of Cut Change- Person`s Required 1Min.
Height of Cut1-3/4" (45.45 mm)
Max Height of Cut 4-3/4 (120.65 mm)
Weight 982lbs. (445.4kg)
# of Decks 7
Distance Behind Tractor 7-1/2"(2.286 mm)
Number of Grass chutes 7
Discharge Capability Rear, Mulch(discharge)
Bearing/Spindles 5
Pulleys(Cast or Split) Cast Steel
Rows of fixed wheels 1
Hydraulic Cylinders 0
Hydraulic Connections 0
Hydraulic Manifold 0
Pulleys 8
Blades 7 CW
Number of Belts 6
Size of Belts 2
3" Back-Bend Idlers 0
1/4 Turn Belt Twists 0
Spring Loaded Idlers 1
PTO`s 1
Carrier Bearings 0
Grease Points 52
Height When Raised 15" (381mm)
