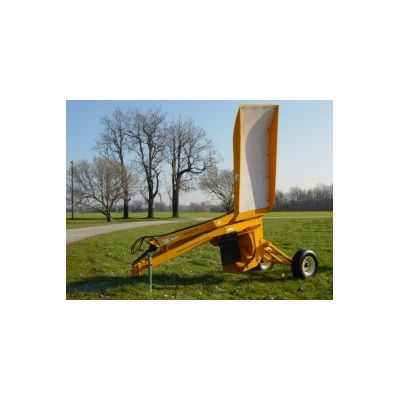

Hurricane Ditcher - Model 24 - Pull Type Ditcher-Terracer
The Model 24 Ditcher-Terracer was developed in 1986 as an efficient and affordable machine to make surface drainage ditches, to construct and clean waterways, and to build and maintain terraces using a standard farm tractor. It has become increasingly popular among soil conservation districts for cleaning waterways and rebuilding terraces. own farm tractor.
Most popular related searches
- Operates with 100-180 HP tractor
- Equipped with jack stand for easy hook-up and disconnection
- Dispenses soil over a 100′ area out the left side of the machine
- Easily laser adaptable for more precise grade control
- Telescoping axles on the rear wheels allow easier straddling of ditches
- Hydraulic depth control utilizes the rear wheels to maintain grade and to give a smooth, flat bottom to the ditch
- 36″ 4-paddle impeller contains hard-surfacing and is designed to be resurfaced as it wears
- Gearbox consists of large shafts, heavy-duty sprockets and bearings, and double 80 roller chain, all enclosed and running in an oil bath; use the external idler adjustment for chain tensioning to dramatically increase the life of your equipment
- Optional terracing shield to contain and position soil
- Recommended HP Speed : 100-180 HP
- Power Take-Off (PTO) : Series 55, 1000 RPM with shear bolt protection 1-3/8-21 spline
- Optional: 1-3/4-20 spline 1000 RPM
- Hitch Type : Standard, Clevis Hitch
- Impeller Wheel : 36″ 4-paddle impeller with 24" cutting edge
- Rear Shoe (dragplate) :
- Approximate shipping weight : 3,200-3,600 lbs.; tongue weight 1,200 lbs
- Gearbox : 1/2″ material with double 80 roller chain, oil bath, external idler tension adjustment
- Depth of cut : Up to 10" in a single pass; up to 28" in multiple passes
- Width of cut : 24" plus taper on each side
- Volume of soil moved with 100 HP tractor : Up to 300 tons per hour (5 tons per minute)
- Volume of soil moved with 140 HP tractor : Up to 1,080 cubic yards per hour (18 cubic yards per minute)
- Optional Add Ons :
- Terracing shield allows soil to be placed 7` to 30` from the machine
- Deflector shield allows soil to be placed within 7` to 12` of the machine
- Heavy-debris paddles
- Laser/GPS
