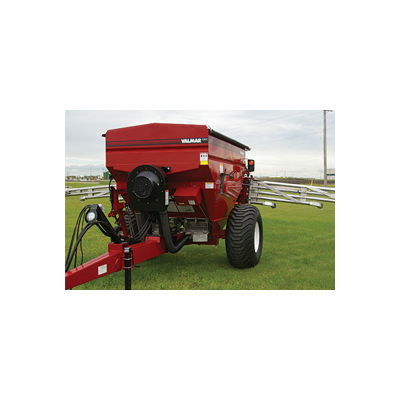

Valmar - Airflo - Model 5500 - Pull-Type Fertilizer Spreader

1000 RPM P.T.O. Fan Drive

• The 5500 PT fan is driven by a 1000 RPM power take off system. The constant velocity drive shaft is 13?8 in. diameter 21 spline and is equipped with an over-running clutch to prevent damage from sudden disengagement of the tractor PTO system. An optional 13?4 in. 20 spline shaft is available.

Ground Driven Metering System

• A hydraulically engaged metering system provides consistent application rates regardless of ground speed. Either side can be manually disengaged for 1?2 width application.

Extremely Accurate Metering Gearbox

• The mechanical gearbox uses 60 different gear ratios for metering rates at 5% increments. Rates as low as 4 lb./acre for herbicide application and as high as 400 lbs. of fertilizer/acre at 5 MPH. A bulk density scale is supplied to help match your fertilizer blend to the application rate charts.

Hydraulic Drive Metering

• The 5500 PT metering can be adapted for hydraulic drive for V.R.T. applications.

Apply Herbicides or Small Seeds

• With an optional kit, the 5500 PT can accurately apply small seeds or herbicide at low rates, something that is not possible with a spinner type spreader. The kit consists of two, 28 groove metering rollers and a fan intake reducer.

Ideal for Row Crop Application

• Tandem walking beam axles are standard on both models. The Row Crop unit is equipped with narrow tires and a 36 ft. boom for application in 36 in. rows.

Optional Marking Systems

• Select from a mechanical disc marker or a Simpson SKS foam marker.
• Roll Tarp Included
• All 5500 Pull-Types come with roll tarp installed.
• Optional Hopper Screen
• Keeps out foreign material.
• Hydraulic Drive Options:

Hydraulic Drive Metering

• A complete Rawson or Raven system can be supplied for customers interested in variable rate applications. Or a basic drive can be installed including a hydraulic motor only, for the customer to complete with a system of their choice. Does not include radar, servo valve, encoders, controller/monitor, cables etc.

Hydraulic Fan Drive

• Valmar offers an optional hydraulic fan drive. This option uses a belt drive with a 32 CC hydraulic motor requiring 23 gal./min. hydraulic flow operating at 1885 PSI which is within the capability of many of today’s higher capacity tractors.

Single Axle Option

• Features a single axle with 12 ply, 550/60-22.5 flotation tires at 90 in. center to center. Avoids the skidding associated with tandem axles when turning.

Airflo 5500 pull-type specifications:

• Hopper
• 170 cu. ft.
• 1 piece, 409 stainless steel construction with 2 component epoxy primer and 2 component cross linked acrylic top coat paint system
• Hopper bottom shut-off slide panels
• Roll tarp installed

Booms

• Available in 40 ft. or 36 ft. spread
• 304 stainless steel construction
• Break away boom tips
• 2.5 in. diameter tubes
• 6 deflectors per side
• Manual fold
• Self levelling

Metering System

• 304 stainless metering bottoms with 6 outlets per side
• 304 stainless steel, self cleaning metering rollers
• Manual half width shut-off on either side
• Rates up to 500 lb./acre at 5 MPH down to 5 lb./acre with optional small seed and herbicide kit
• Ground drive
• Hydraulically engaged
• 60 speed gearbox with 5% between settings
• Hydraulic metering drive options
• A basic drive supplied with hydraulic motor only for completion by customer with system of their choice – does not include radar, servo valve, encoders, controller/monitor, cables etc.
• A Rawson AccuRate Drive complete with hydraulic lines that is compatible with many of today’s GPS systems
• A complete Raven System such as Viper Pro, Envizio Pro® or SCS 660

Fan

• 20 in. impeller
• 2-5 in. fan outlets
• PTO fan drive|
• 1000 RPM CV driveline, 13?8 in. – 21T spline
• 19:4.12 pulley drive ratio
• 4 band belt with spring loaded idler tensioner
• Optional hydraulic fan drive
• 32 CC motor requires 23 GPM operating at 1885 PSI
• 3/4 in. hydraulic lines
• 3/4 in. couplers recommended
• 30 in. water column manifold pressure
• Case drain required
• 6.9:4.12 pulley drive ratio

Hydraulics

• Requires 1 remote to engage metering system
• Requires 2nd remote for optional hydraulic boom fold
• Requires additional remotes for optional hydraulic drives for fan and/or metering

Chassis

• Tandem walking beam
• Adjustable axle width with available tires: 16.5L x 16.1 (81-99 in.) or 9.00 x 20 (72-90 in.)
• 2.5 in. axles with 6 bolt hubs
• Single axle
• 550/60-22.5 tires/12 ply at 90 in. center to center
• Tire Dimensions – width 550 mm (21.7 in.)/OD – 1238 mm (48.7 in.)
• 2.75 in. axles with 8 bolt hubs

Options

• Herbicide kit includes 1 set of 28 groove metering rollers and fan intake reducer for metering finer products and lower rates
• Foam or disc marking systems
• Extension kit to extend 36 ft. boom to a 38 ft. spread
• Hydraulic boom fold
• Hopper screen assembly

Dimensions/Shipping Information

• Height: 8 ft. 6 in.
• Width: 8 ft. 6 in. (9 ft. 2 in. with single axle)
• Length: 17 ft. 3 in.
• Weight: 4360 lb.
