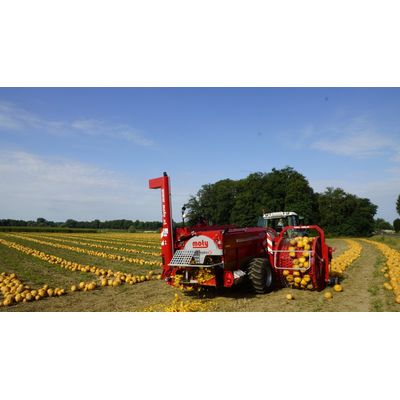

Moty - Model KE 3000 Hydro S -Pumpkin Seed Harvester

• Performance: 1,2-1,5 ha / h
• Drive: hydraulic
• Power consumption: 80 kW/110 HP
• Dimensions (LxWxH): 7.100 x 2.800 x 3.860mm
• Pumpkin pick-up: Ø 1.700mm, 10 rows
• Screening drum: 3.000 mm
• Weight: approx. 7.500 kg

• economical operation due to reduced fuel consumption and reduced hydraulic oil volume
• pure, clean seeds -  minimal losses
• all the movements hydraulically driven (Danfoss hydraulic components)
• ARS-cleaning system – without suction fan – silent operation, no dust
• crushing drum with automatic stone protector
• automatically operated level control

STEUERUNG.
Electronic control system with large display - tethered. Adjustment of the belt conveyor and crushing drum via display. Operating hours counter with reset button.

CENTRAL LUBRICATION
The central lubrication provides a considerable reduction of daily maintenance work. The running time of the machine will be extended, labor costs will be reduced.

LEVEL CONTROL
During harvesting the machine must be tilted backwards. With the automatic level control you have the advantage of self-regulation as the machine regulates this automatically - no matter whether you are harvesting uphill or downhill.

PRESSURE REDUCTION FOR PICK-UP
For reduction of support pressure of pumpkin pick up on the ground by individually adjustable back pressure via pneumatic cylinder.

SCREWABLE TIPS
The screwable tips of the pumpkin pick-up can be replaced easily in case of damage. The broad pumpkin pick-up enables fast and efficient harvesting.

STONE SEPARATOR
Automatical stone separator - stones are guided through the crushing unit by automatical lifting of crushing drum. Prevention of machine stoppage caused by stones.

SCREWABLE CRUSHING LEDGES
The screwable crushing ledges of the crushing drum can be replaced easily. High durability due to hardened steel.

ARS CLEANING
The patented ARS abrasive cleaning works without fan - silent operation, no dust. Camera for monitoring the seed flow.

DISTRIBUTION PLATE
The distribution plate ensures an equal distribution of the pumpkin pieces on the field. The rotting will be accelerated.

TECHNICAL DATA

Performance: 1,2-1,5 ha per hour
Power consumption 80 kW/110 HP
Dimensions (LxWxH): 7.100 x 2.800 x 3.860 mm
Weight: approx. 7.500 kg
Hydrauli connectors 1 x double action (hydr. jack)
(on tractor): 2 x single action (pick-up, crushing unit)

STANDARD EQUIPMENT

Pumpkin pick-up

• movable inner and outer pumpkin positioner
• reinforced Farmflex wheels
• conveyor with optimized support rollers – less dirt
• pumpkin pick-up: diameter 1.700 mm, 10 rows
• pumpkin pick-up - hydraulically liftable and pivotable into street position

Crushing unit

• NEW! exchangeable sheet in the inlet area of the crushing unit
• crushing drum rotation speed continuously adjustable
• stone protector - stones are guided through the crushing unit by automatical lifting of crushing drum
• crushing plate with 2 x 4 knives
• crushing drum with 5 crushing sectors

Pumpkin seed separation and cleaning

• screening drum length: 3000 mm
• NEW! 6 carrier rubbers
• NEW! screening drum with 4 and 5 mm cleaarance
• optimised 2.0 ARS abrasive cleaning system – increased throughput
• camera at ARS cleaning system – for monitoring the seeds

Seed tank and emptying

• seed tank capacity approx. 1.800 kg
• filling level indication for seed tank
• hydraulically movable emptying auger
• max. discharge height: 3.300 mm

Control system

• electronic control system with large display - tethered-automatic level control
• speed of the conveyor belt and crushing drum adjustable via display
• operating hours counter with reset function

Drive

• hydraulic drive with Danfoss and Poclain hydraulic components
• PTO speed 750 rpm (1000 rpm possible on demand)
• double wideangle PTO-driveshaft (Walterscheid)
• oil tank 180 l with hydraulic oil cooler- load sensing hydraulic oil pump
• closed hydraulic circuit for crushing drum and oil cooler with dedicated oil pumps

General

• air brake system
• reinforced braking axle
• tires 600/40-22,5
• K80 ball hitch with hydraulic jack
• drawbar eye D40 or D50 possible on demand
• 2 working lights (LED) – switchable via control unit
• Austrian rode homologationl 25 km/h industrial or agricultural and forestry

Options

• central lubrication system
• pick-up with screwable tips
• crushing drum with screwed crushing ledges
• pressure relief system for pick-up
• distribution plate
• NEW! long emptying auger (max. discharge height 3.660 mm)
• NEW! Fast-lift for pumpkin positioner
