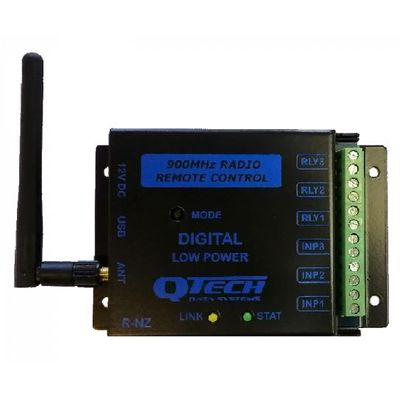

QTech - Model WP2P -Digital Wireless Point To Point - Low Power
The Digital Wireless Point to Point (WP2P) system is a wireless remote control solution with three switched inputs & three relay outputs. Simply operate a switch and the relay at the other end operates, allowing you to remotely monitor & control three independent devices. There is no configuration or programming required, simply wire the connections and connect the power.
This innovative and cost effective system allows you to:
- Switch a pump, irrigator or solenoid valve on and off remotely
- Confirm if your irrigator is switched on and pumping water
- Open an electric gate and then turn on a light
- Send pulses from a flow meter without installing expensive cables
- Replace an existing 6 core cable with wireless technology
900MHz radio systems work most reliably with clear “line of sight” between the modules. If this is not possible, consider using our WP2P Repeater and/or optional antennas.
The Digital Wireless Point to Point (WP2P) system is the ideal choice for generator remote control, alarm monitoring and irrigation system monitoring and control.
Pricing shown is for a pair of matched WP2P modules.
- Low power consumption, typically 6mA, making it ideal for solar or battery installations
- No programming required – easy mounting and installation
- Line of sight distances of ~350m with the supplied antennas, ~2km with whips, ~4km with Yagi antennas
- Radio communications confirmed with Link Status LED
- State of the art digital radio using 900MHz Digital Modulation
- Configurable failsafe output hold feature on latest Rev E version
- Star configuration options are also available using four modules
- DIN Rail mounting option – Optional DIN rail mount to simplify panel installation
- Frequency 917MHz to 927MHz
- RF Output 100mW
- Digital Modulation technology
- Dimensions L 112 x W 76 x D 26 mm
- Enclosure Steel, powder coated
- Power connector 2.1mm DC jack, centre positive
- Supply Voltage 6-24V DC (max 28V DC)
- Short circuit and reverse polarity protection
- Current Consumption 6mA Typical
- Weight Less than 350g
