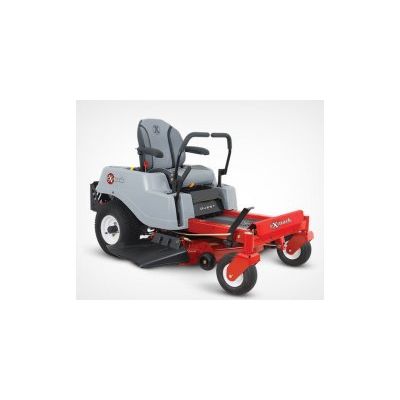

Quest - Model S-Series -Zero-Turn Lawn Mowers
The Quest S-Series truly goes the extra mile, providing all the amenities of the E-Series plus even more commercial-grade features. Like the ultra-smooth serviceable ZT2800—standard on the 50” model. Or the Series 2 fabricated deck. It’s heavy-duty 10-gauge steel and welded wear strip gives you a great cutting machine that will last. So, if you’re looking for the ultimate commercial-grade residential riding mower, look no further than the Quest S-Series, from Exmark.
Standard, rear engine guard provides increased protection of critical engine components. The S-Series engine guard is enhanced for extra engine protection.
Our deck system offers added strength and commercial durability.
The redesigned Quest mower has the commercial Exmark styling and provides a premium, ergonomic seat system that delivers a smooth, comfortable ride, even over uneven terrain.
With a single-point height adjust, it`s easy to vary the Quest`s cutting deck. The S-Series mower is quipped with a foot lift-assist, which eases lifting and lowering the cutting deck. (Optional on E-Series.)
A single, 2.9-gallon tank with one fill location keeps you mowing longer with fewer fill-ups.
Built precisely to our specifications allowing us to control engine quality from start to finish. Super-quick and easy oil drain system, and an advanced air intake system specially designed to decrease dirt ingestion and increase performance.
Equipment
- Blade Spindles No maintenance, sealed and non-greasable spindles; 5.50"-diameter cutter housing with 0.67"-diameter spindle shaft.
- Drive Tires 18 x 6-8, 2-ply Turf Tech TL
- Cup Holder Standard
- Tractor Frame Unibody, Riveted 10 ga. Steel
- Steering Control Hydraulically dampened twin levers, adjustable both fore and aft. Levers are also adjustable to 2 height positions.
- Front Caster Tires 11 x 4-5 ribbed tread, pneumatic
- Parking Brake Automatic-actuated pawl brake.
- Seat Commercial Grade High Back contoured foam padded with armrests. Hinged mounting, spring suspension. Adjustment: Fore and aft from Operators’ Position.
- Electrical 12-volt battery with 15-amp alternator.
Power Components
- Engine Brand Exmark
- Engine Model 452
- Engine Displacement 452
- Engine Series Single
- Engine Type Carbureted
- Engine Speed 3,300 rpm
- Air Filter Standard Engine Manufacturer`s air filter
- Fuel Type Gas Carbureted
- Fuel Capacity High-capacity, 2.9-gallon (11.0-L), single fuel tank with single fill location.
- Fuel Indicator Translucent Visual
- Drive Hydro-Drive
- Drive Description Two Hydro-Gear ZT2200 hydro static transmissions with no hoses, integrated cooling fans, integrated reservoir.
- Speed Infinitely variable speed selection from 0–7 mph (11.3 km/h) forward. 0–3.4 mph (5.5 km/h) reverse.
- Carb Compliant No
- Deck Lift Standard; lever lift. Foot-assist lifts the deck to maneuver around obstacles.
- Safety Package Operator Presence Controls (OPC) and drive system interlock.
- ROPS None
- PTO Engagement MagStop electromagnetic 80-ft-lbs clutch
- Drive Wheel Release Allows unit movement without engine running.
- Casters .25" thick caster yoke arms
Decks
- Width / Cutting Deck 34"
- Deck Style Floating Deck
- Deck Style Description Exmark Series-2 fabricated and welded steel deck. Side discharge standard with the option to bag or mulch.
- Deck Construction 10-gauge top that is formed and welded, 12-gauge side skirt and 7-gauge welded bumper.
- Blade Tip Speed Approximately 18,500 fpm.
- Cutting Heights 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments, adjustable from operator seat with standard foot operated assist.
- Blades 2 Blades at 17.50" Length
Dimensions
- Width 45.6 in. (115.8 cm)
- Length 74.7 in. (189.7 cm)
- Height 45.4 in (115.3 cm)
- Curb Weight 521
