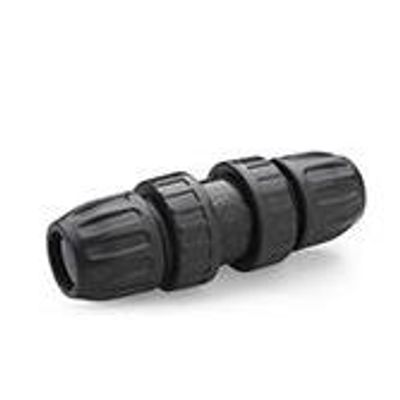

Plimat - Model PP - Quick Coupling Spring Check Valves
FromPlimat S. A.
These fittings are valid to be used in conducting water and nourishing fluids, based on the laws and standards valid in the countries of the E.E.C.
Most popular related searches
MATERIALS
- Body and remaining components: PP H2150
- Cone:PVC U
- Spring: Inox Steel AISI302
- Cone seal: EPDM
- Foot valve screen: PPH 2150|
- O`ring gaskets: EPDM
ASSEMBLY
By simple fitting and tightening of tubes
SERVICE PRESSURE
The nominal service pressure, just as an indication, is of 10 bar at 20°C (water). The maximum temperatures of use must not go beyond 80°C
