Poligon - Model DN-150 - Quick Disconnect Connection
FromPolygon-Auto LLC
Quick-release coupling is designed for connection of tubes and hoses (LFT, PE etc.), different parts of irrigation and industrial equipment. It enables quick connection in installation of irrigation systems, coupling to the suction units, mobile and lateral pivots.
Most popular related searches

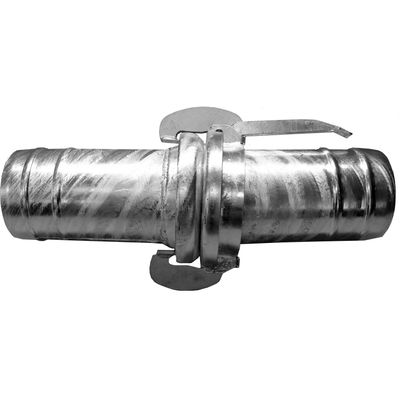

Quick-release coupling consists of the clamp 1, welded pipe 5 with sphere 2 and flange 3 with sealing ring 4 welded on it. The assembling is performed by coupling of the sphere 2 to the flange 3 via the sealing ring 4 and fastened by the clamp 1
- Pipe size, mm (inch) 150 (6")
- Nipple Length mm 250
- Nipple wall thickness, mm 2.5
- The diameter of the nipple on zig, mm 156/207
- Connection Type sphere / flange
- Working pressure, kgf/cm2 (MPa) 10 (1.0)
- Test pressure, kgf/cm2 (MPa) 20 (2.0)
- Coverage connection, DIN EN I SO 1461 hot zinc
- The thickness of the coating micron 70
- Mass assemblies, kg 10
