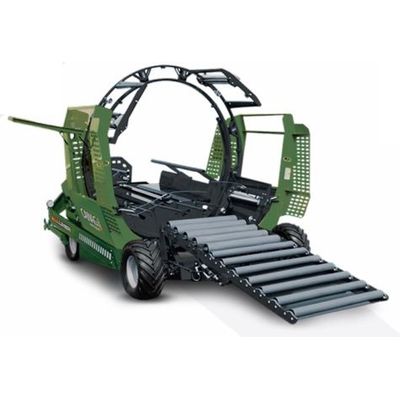

CANAG - Model Allliner - Quickest And Simplest Bale Ejector System

DVANTACES

• Quick wrapping Easy to transport Low maintenance cost Proven technology

FEATURES

• Continuous round bale wrapper from 4` to 5` length and from 4` to 5`6" diameter and square bale from 3` to 4` by 6` in length
• 4 aluminium stretchers 30" 13 HP Honda engine with electric starter
• 18 amps alternator
• Raise and lower front axle hydraulically
• Bale compaction adjustable hydraulically by brake system on wheels
• Direct drive (hydraulic)
• Front wheel drive with traction tires
• Hydraulic tailgate
• Manual hydraulic control `joystick" type
• For freight: length 15`/width 8`6" / height 9`8"
• Machine goes from 9`6" working mode to 8`6" transportation mode quickly and easily
• Baked powder paint

REMOTE CONTROL OR « DIRECT »

• Working lights
• Road lights
• Safety light to indicate that the engine is tunning
• Advanced security protection Tor users Security guards
• Emergency stop on the machine or by remote

PERFORMANCE

• Wrapping performance of 120 bales per hour
• Bale counter
• Plastic wrap shortage detector
• Plastic wrap stop on the bale ¦ NOT » on the joint
• Hermetic and uniform wrapping made possible by our hydraulic brake system and the ability to double the wrapping automatically on the joint

REMOTE CONTROL OR «DIRECT»

• Steering by remote control or direct
• Start and stop the motor by remote control or direct
• Eject bales by remote control or direct
• Double the plastic wrapping by remote control
• Securely restart the automatic system by remote control
