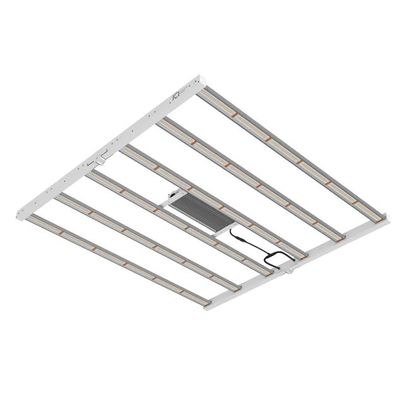

IQ Lighting - Model SKY - Rack LED Top Light
The SKY is a 6 or 8 bar light fixture designed for close proximity lighting either in a vertical system, low mounting in a warehouse, or indoor grow tent applications. This powerful, full-spectrum light source is intended for full term plant growth from the vegetative stage to the higher light required in bloom stage.
Driver
World class LED driver. Input options Auto Sensing 90V-305V and 245V-528V.
Dimming
SKY 9 is dimmable in 900W, 720W, 540W, and 360W.
SKY 7 is dimmable in 720W, 580W, 430W, and 290W.
SKY 6 is dimmable in 630W, 500W, 380W, and 250W.
SKY 3 is dimmable in 340W, 270W, 200W, and 140W.
Control
0-10V (Option) Fixture is equipped with an external RJ14 cable and allows for daisy chained installation of up to 160 fixtures per controller (80 fixtures per controller port).
Spectrum
Our Broad Spectra offers light emission across the PAR 400-700nm wavelength range. We balance efficiency with quality of light to achieve the desired plant response and work environment.
INPUT POWER: 340W, 630W, 720W, or 900W
EFFICACY: 2.8, 2.7, 2,6 or 2.65 μmol/J
PPF: 952, 1700, 1870, 2385 μmol/s
INPUT VOLTAGE: 120V - 277V; 277V - 480V
MOUNTING: ≥ 6” Above Canopy
THERMAL: Passive
LIFE: 50,000 hrs
POWER FACTOR: > 90%
IP RATING: IP66
CERTIFICATION: UL8800, UL 1598 Wet
WARRANTY: 5 Year Standard
AMBIENT TEMP: -10°C / 40°C
STORAGE: -40°C / 85°C
ACCESSORY: 6` extension power cord
LENGTH: 45.7"
WIDTH: 41.7"
HEIGHT: 2”
WEIGHT: 340W/630W/720W - 27.5lb / 12.5kg 900W - 39lb / 17.7kg
