Snrcorp - Raised Dome Greenhouse

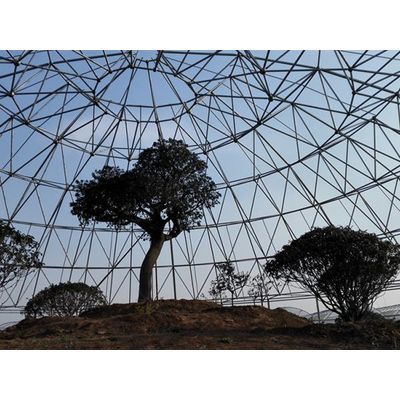

• Raised dome greenhouses feature a geometrical sphere grid structure with excellent ability to withstand strong winds.
• You can put white foam boards onto the curved walls to gather and reflect sunlight, which guarantee high-efficiency use of daylighting.
• One of the most energy-saving greenhouses by combining various temperature regulating technologies.
• The greenhouse has warm air gather at the top so that top ventilation windows and side ventilation windows cool the air by convection.
• High and board internal space enables you to yield more using vertical farming.

Frame:

• Hot-dip galvanized steel. It enables a fast and convenient installation. Meanwhile, it is also environmentally friendly.

Covering materials:

• On the roof:polycarbonate sheets, glass, polyethylene film
• On the surrounding:polycarbonate sheets, glass, polyethylene film
• Solar shading system: solar shading system inside or outside of the greenhouse is available
• Span: 6.4m/8.0m/9m/9.6m/10.8m/12m or customized size
• Width: 4m, 8m or customized size
• Height: 3m-9m or customized size

Frame load:

• Wind load: 0.5kn/m² or customized load
• Snow load: 0.3kn/m² or customized load
• Plant load: 0.15kn/m² or customized load
• Rain load: 140mm³/h or customized load

Raised dome greenhouses are often used as fruit greenhouses, vegetable greenhouses, and flower greenhouses. We can customize various raised dome greenhouses and relevant systems and equipment including heating systems, ventilation systems, irrigation and fertilization systems, spray systems, movable benches and more.
