Rammy - Model 120 ATV - Rammy Snowblower for Efficient ATV Snow Removal
Don't let the snow get too high!

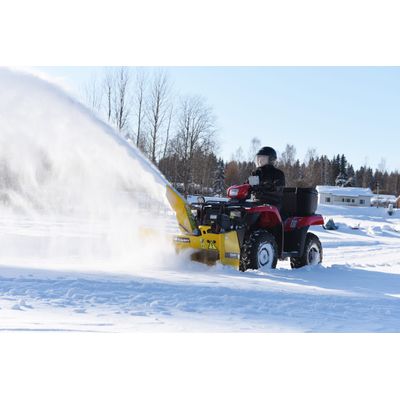

The Rammy Snowblower 120 ATV is an agile and efficient snowblower for your ATV. With this machine, you can finish all snow works quickly. The snowblower is suitable for small gardens and long driveways. The Rammy ATV snowblower is lightweight and compact, so your ATV manoeuvrability and off-road performance will remain good. The snowblower also works in wet snow. The snowblower has its own engine.
With the adjustable frame, this snowblower is suitable for almost all 4×4 ATV-s. If the CENTER MOUNTING KIT is on the bottom of your ATV, Rammy can be used with existing fasteners. If you need these (not included in the standard delivery), we and our dealers have CENTER MOUNTING KITS.
The snowblower can also be attached with a LOCK HOOK 16-19-20 mm. (optional). Like Can-am, Arctic Cat, Polaris or Click&Go2.
Lightweight and compact
The Snowblower 120 ATV is lightweight and compact. The snowblower is agile and efficient. The snowblower is lifted with the ATV's winch, making it easy to use even in a small garden.
Dual snow auger
The snowblower has a dual snow auger, which makes the snowblower short. The snow auger has a rubber sheet fuse, which minimises damage in collisions with rocks or hard objects.
Quick connection with pins
Rammy is attached to the base of the ATV with two locking pins, using a centre mounting kit . The attachment is the same as in the snow plate (centre mounting kit).
Also works in wet snow
The unique MDS technology enables to have great functionality also in wet snow. The snowblower has a Briggs&Stratton 306 cm3 winter engine.
Electrical remote control
The snowblower has a remote control with the following selections: rotation and angle of the discharge chute, engine on/off.
Ready-to-use package
The Rammy snowblower comes in a ready-to-use package. 1 snowblower, 2 remote control, 3 adjustable accessory frame.
Clearing width: 1,18 m
Length: 0,5 m
Weight: Snowblower 100 kg, Accessory frame 20kg
Height of loading chute: 550 mm
Snow throwing distance: 1-10 m
Method of moving/throwing snow: Single-stage double-threaded blower. The impeller uses the MDS (Minimum Distance Space) technique, which provides maximum throwing power. Max rotating speed is 900 r/min.
Engine: Brigss&Stratton Snow Series 1450 winter engine. Torque 20 Nm. 306 cm3. Fuel tank capacity 3 L. Oil capacity 1,1 L.
Start: Easy pull start and el. start (230 V)
Fuel consumption: 1-2 L/h
Attachment to ATV: Mount brackets with holes on dozer blade on ATV, hole Ø10mm adjustable width of mount bracket (thickness of mount bracket is 8mm) 240-500mm (outer dimension) and the adjustable length is 750-1250mm. Watch standard mounting. Optional Arctic Cat, Can-am, Click&Go and Polaris 16-19-20 mm lock hook mounting.
Raise/lower: Winch of ATV
Remote control: Electrical, 3-function
– shutdown
– turning of discharge chute
– control of angle of end of discharge chute
Standard equipment: – Accessory frame
– Adjustable skis
– Remote control
– Replaceable scraper blade
– Ice removal tool
Capacity: 750 cubic meters / hour (14 cm total width 5 km/h).
Optional 1: Lock hook Ø16/19/20 mm Arctic Cat, Can Am, Polaris and Click&Go: 70 € inc. VAT 25,5 %.
Watch picture.
Price:
4443 € inc. VAT 25,5 %. Inc. el.start and el. remote control.
3540,23 € VAT 0 %.
CE marking is affixed to the device.
Product is patented.
CERTIFICATE OF CONFORMITY – Rammy Snowblower 120 ATV
