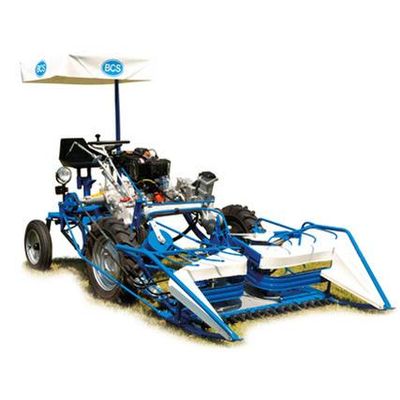

BCS - Model 280 - Reaper-Binder

SHARE
The 280 reaper-binder is the ideal machine for cutting and binding sheaves of wheat, sesame, lavender and officinal herbs while comfortably sitting in the operator`s seat. The steering wheel acts on the rear wheels. The differential with lock and the independently-controlled brakes on the two wheels achieve easy manoeuvring of the machine on every type of ground.
Most popular related searches
reaper binder
reaper
crop binding
mower unit
sesame

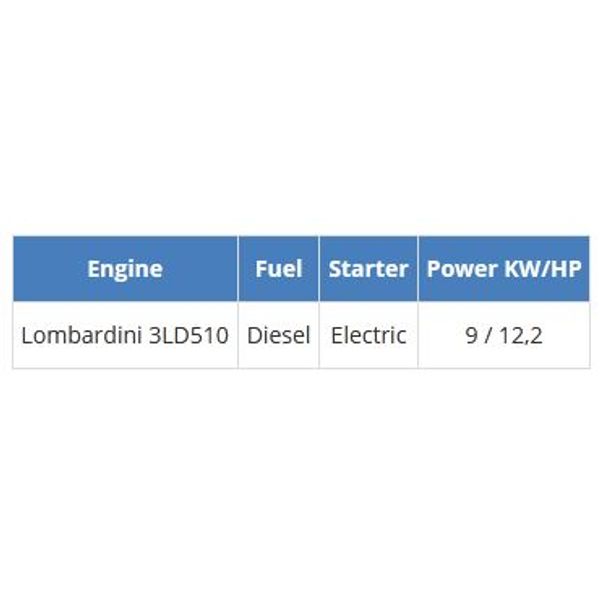

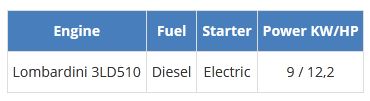

The 280 reaper-binder was studied to last over time and is operated by asingle-cylinder Lombardini diesel engine 3LD510 by 12.2 HPand has a mechanical drive with4 forward gears and 1 reverse geartransmission.

PTO engagement, through gear drive, is lever operated.

Cutting width is 140 cmand theforks on the cutting barmove continuously and constantly to convey the cut crop towards the binder.

Thebinderis patented by BCS and has extremely refined technique: it adjusts binding of cut crop and cutting of the twine when the sheaf is ready.

The sheaf diameter can be adjusted in four positions through a dedicated spring.

Lifting and lowering of the reaper-binder is hydraulically operated through a pedal control.

Thanks to thetwo work lightspositioned on the sides of the operator`s platform, the 280 reaper-binder can be used for night work as well, and in case of poor light conditions.

  • Number of forward gears + reverse: 4 + 1
  • Gearbox:always engaged gears
  • Clutch:dry single-disc with pedal operation
  • Differential with lock:yes
  • Power take-off:with lever engagement and gear drive
  • Brakes:pedal-operated, with independent controls on both wheels
  • Driving positionwith adjustable seat and steering wheel
  • Wheels:Front 4.50-19 (optional 6.00-16) - Rear 4.00-12
  • Weight:approx. 450 kg
  • Dimensions:Length 3600 mm - Width 1950 mm - Height 2300 mm
