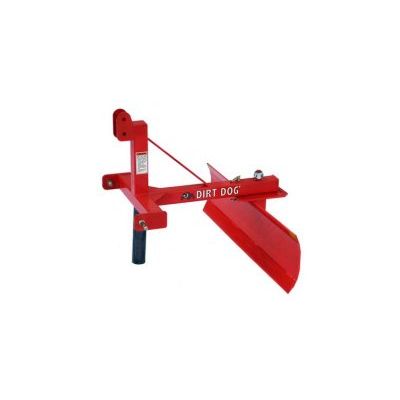

Dirt Dog - Model 20 Series - Rear Blades

category 0 and category I quick hitch compatible A-frame
heavy duty A-rame
5 forward angles and 3 reverse angles
1/4" inch moldboard available in 4, 5, and 6 ft

Overall Height

• 34 1/2"

Overall Width

• 2004…4 ft
• 2005…5 ft
• 2006…6 ft

Overall Depth

• 36"

Moldboard Height

• 12 1/4"

Weight

• 2004…136 lbs
• 2005…150 lbs
• 2006…164 lbs

Tilt Adjustment

• N/A

Offset Adjustment

• N/A

Angle Adjustment(Forward – Reverse)

• 30° – 15°

Adjustment Method

• Manual

Lower Hitch Pin Height

• 15"

Horse Power (2wd – 4wd)

• 24 – 20

Hitch

• 3-Pt. Cat I & Cat I Quick Attach

Cutting Edge

• 3/8″ × 3″ Weld on

Skid Shoes

• N/A

King Pin

• 1 1/4" Grade 8

Parking Stand

• N/A

Paint Options

• Red, Green, Orange, Blue or Yellow Powder Coat Paint
