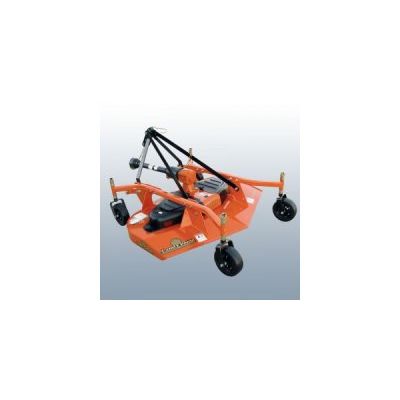

Land Pride - Model FDR16 Series -Rear Discharge Grooming Mowers

3 Cutting widths  48”, 60”, 72” Able to adapt to various size needs.
Rear discharge  The wide, even dispersal of grass leaves a fine thin layer directly behind the mower, vs. a possible windrow to the side. Keeps grass from blowing in unwanted areas. Easier to mow around objects.
Deflectors  Built-in to throw material down, as well as forcing thrown objects down.
Clevis type lower hitch points  Allows for easy hook-up by being able to remove pins and back into clevises.
Floating 3-point  Top and bottom hitch points float up and down which allows the mower to float over uneven terrain.
Roll formed front on deck  3/16" roll formed front deck edging for greater strength and impact resistance.
Frame-over-deck design  Frames takes stress out of deck by supporting it.
3/16” Deck thickness  Heavy deck material to aid in overall strength and longevity. Reinforced spindle mounts.
Lower hitch points adjust in and out  Accommodates many tractor configurations by adjusting in and out.
Hard rubber tires  Hard rubber tires are sandwiched between the rim halves, bolted in and can’t go flat. Roller bearings allow for a long life.
Heavy-duty Gauge wheel arms  1/4” Gauge wheel arms increases strength.
Non-aligned gauge wheels  Rear wheels don’t track behind the front wheels to reduce laying grass over.
High Blade Tip Speed  For cleaner cutting and better dispersion of clippings
Choices of Blades  Low, medium, high-lift, or mulching blades are available to match customer needs and specific applications.
Blade overlap  1" blade overlap assures no skipping in tight turns.
Heavy-duty roller bearings & 1 3/8" machined spindles  Roller bearings for smooth running and quiet operation, 1 3/8" machined spindles for durability, balanced performance, and accuracy. Cast iron housings for added protection and durability.
Top greasing spindles  Assures top bearing gets grease. No shields to remove.
Single B-section Kevlar belt  Simple one belt design. Kevlar material adds additional strength.
Vacuum formed ABS belt guards  No scratching, no rattling.
Spring loaded adjustable idler  Allows for constant and proper tension on belt. Better than adjusting gearbox for belt tension.
Top Hitch  Top hitch has two hook-up points which allows greater lifting leverage for smaller tractors.
Driveline hanger  For ease in hookup and storage of driveline. Keeps driveline off ground.

Horsepower Required:
