Ab Närpes Trä & Metall (NTM)

NTMModel KGLS -Rear Loaders

SHARE

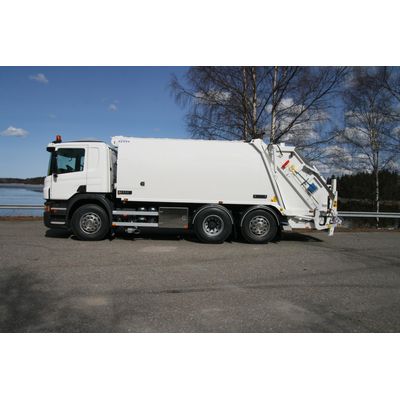

KGLS is a low, agile and lightweight refuse collector in which you can also empty larger bins. It is the perfect choice where movement space is restricted but demands on reliability and durability are high. The conveyor and packer plate work cycles are started using a push button but packing can also be controlled using levers when required. The KGLS is designed for a chassis with a gross weight of 15-26 tonnes.

Most popular related searches
  • Bin lift proportionally controlled by hydraulic levers
  • Pneumatic bin catcher bar
  • Possibility for lever manoeuvring of the packing cycle
  • Variable pump
  • Cleaning of packer plate when emptying
  • Rear view camera
  • Footboards
  • Rear or front winch
  • Automatic compaction cycle
  • Semi-automatic bin lift
  • Auto lube
  • Hydraulic oil heater
  • Weighting equipment
  • Sack lift
  • Different box options
  • Bio equipment
  • Enclosed hopper
  • Side access door
  • Total length: 5000-7100 mm
  • Load volume (netto): 10-18,5 m³
  • Body weight: 5000 - 5700 kg
  • Height above chassis frame: 2078 mm
  • Width: 2550 mm
  • Loading height, minimi: min 1000 mm
  • Compaction force: 243 kN (27,7 ton)
  • Compaction force: 210 bar
