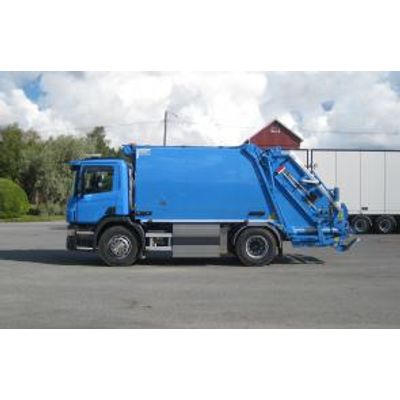

NTM - Model KG -Rear Loaders
The KG standard model can be mounted to 18t-26t chassis. The NTM KG body can be adapted to fit different chassis types & wheelbases to give you optimum payload capacity. Standard features include-: Lever controlled bin lift and winch, push button controlled carriage & packer plates, lever operated packing controls and pressure & flow-compensated hydraulic system. The NTM KG offers users; minimum down time periods, reliable components and reduced servicing requirements. High quality & reliability coupled with low life cycle costs make the KG a refuse collector worth investing in.
Organic waste often causes sanitary problems, bad odours and stench when emptying, this contributes to a poor work environment. Based on the original model, the KG, we have developed the KGBH, which is fitted with a closed tailgate and efficient ventilation. The operator`s work environment can be further improved with a high loading height. The KGBH is the obvious choice with regard to environmental friendliness and dust-free emptying.
- Bin lift proportionally controlled by hydraulic levers
- Pneumatic bin catcher bar
- Possibility for lever manoeuvring of the packing cycle
- Variable pump
- Cleaning of packer plate when emptying
- Rear view camera
- Footboards
- Rear or front winch
- Weighting equipment
- Automatic compaction cycle
- Demountable body
- Semi-automatic bin lift
- Auto lube
- Hydraulic oil heater
- Sack lift
- Bio equipment
- Different box options
- Enclosed hopper
- Side access door
- Total length: 5000 - 7100 mm
- Load volume (netto): 11-20 m³
- Body weight: 5400 - 6200 kg
- Height above chassis frame: 2230 mm
- Width: 2550 mm
- Loading height, minimi: 1000 mm
- Compaction force: 30,5 ton
- Compaction force: 260 bar
