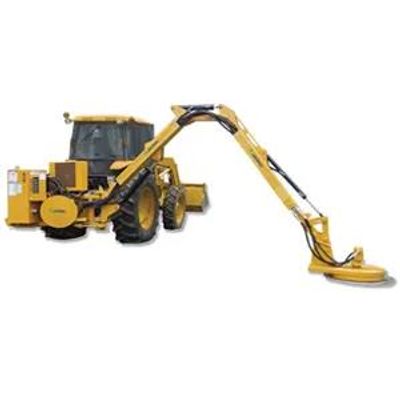

Bush-Whacker - Model RME-22 -Rear-Mount Boom Mower
22-Foot Rear-Mount Boom Mower. The cutting edge of versatility with all the quality, service, and dependability you’ve come to expect from a Bush-Whacker. Five-foot brush cutter with a 22-foot boom arm. With advanced joystick controls of four axis of motion. Independent, pressure compensated hydraulic system with load sensing capabilities. A 7″ gauge deck with 3/8″ side skirts. High-strength steel tubing on primary and dipper booms
- Hitch Type – CAT II (CAT II Quick Hitch adaptable) or CAT III 3-point hitch
- Transportation Width – 101″
- Transportation Length – 96″
- Transportation Height – 140″
- Oil Reservoir Capacity – 50 gal.
- Horizontal Reach – 22′
- Vertical Reach – 21′
- Down Reach -14′
- Front to Back Pitch – 108″
- Operating Pressure – 2,700 PSI
- Pitch of Mower Head – 120°
- Deck Thickness – 7 gauge”
- Skid Shoe Thickness – 3/8″
- Weight (Approximate) – 3,250 lb. W/O oil
- Tractor HP Requirements – 90 HP PTO, 11,500 lb minimum tractor weight.
- Tractor PTO – 540/1,000 RPM
- Cutter Shaft Speed – 980 RPM
- Hoses – 2″ ID suction line, 1″ ID pressure line
- Control Valve – Proportional 5 bank valve with load sensing capability and manual override built-in.
- Control – Proportional computer-controlled joystick which controls 4 axis of motion. Toggle switch
- used for mower head with emergency stop override.
- Power – 94 HP at a speed of 2,025 RPM
- Hydraulic Filters – 140 Micron suction filter located inside the tank; 10-micron spin-on type return
- filter with restriction gauge
- Hydraulic System – Totally independent
- Hydraulic Pump – Pressure compensated piston-type used to reduce the heat of the system produces a flow
- rate of 42 GPM
- Primary Boom Construction – 5/16 x 5 x 5 high-strength steel tubing
- Dipper Boom – 5/16 x 4 x 5 high-strength steel tubing
- Safety Breakaway – Built into hydraulic system (standard)
- Quick Attach Boom Head
- Quick Disconnects on Attachment Hydraulics
- Optional 48″ Saw Blade Attachment
- Optional hinged Door for 60″ Cutting Deck
Bush-Whacker’s Rear-Mount Boom Cutter is an engineering marvel! We offer a notable difference with our 3/4″ cutting blades versus traditional 1/2″ or 5/8″ and a completely self-contained hydraulic system. Bush-Whacker’s Rear-Mount Cutter also includes blades with a cutting edge on three sides versus traditional two-sides. And best of all, you’ll receive the benefits of a heavy-duty mid-mount cutter at the price (and convenience) of a 3-point hitch!
We now offer two cutting head options:
- A hinged deck brush cutter
- A saw blade attachment
