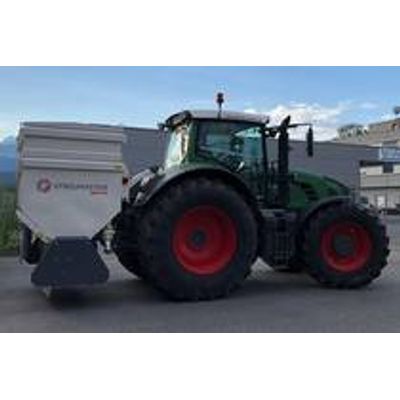

Streumaster - Model SW 5 RC -Rear-Mounted Spreader

• The compact, tractor-towed binding agent spreader is perfect for use in confined spaces
• Rear mounting enables ideal use of the tractor`s power
• The standardized three-point hitch is suitable for mounting the spreader to the rear of all common tractors and ensures that the operator has an unobstructed view toward the front.
• The C series` self-cleaning metering feeders offer outstanding spreading accuracy
• Operator comfort and performance of the SW 5 RC are further enhanced by the automatic spread rate control system and the fill level indicator

The most important data:

• Container capacity: 5 m³
• Filling connector: 3" / 3"
• Spreading quantity: 1 – 50 l/m²
• Max. working width: 2.460 mm

• Standard coating ¦
• Special coating ?
• Loading and lashing lugs ¦
• Hydraulic fold-down container cover ¦
• Relief cover ¦
• Vent pipe and pressure relief flap integrated into the container ¦
• 3” pneumatic filling device ¦
• Hydraulic and electrical systems centrally located behind a protective cover ¦
• Electronic weighing device *1 ?
• Radar unit for speed detection ?
• Control unit ¦
• Control panel for automatic spread rate control ?
• Continuous spread rate adjustment ¦
• Level indicator “container full” ¦
• DN 230-10 spreading unit in rotary feeder design ¦
• DN 230-20 low-volume spreading unit in rotary feeder design ?
• Self-cleaning rotary feeders ¦
• Three separately controllable partial spreading widths ¦
• All-automatic dosing, regardless of the travel speed ?
• Standard warranty ¦
• Customized warranty ?
• Dust protection ¦
• Hose filter package ?

• Container capacity 5 m3
• Size of filling connector/filling hose 3”/3”
• Working width/partial widths 2,460 mm/3 x 820 mm
• Spreading quantity at 1 km/h *1 1– 50 l/m2
• Own weight *2 1,380 kg
• Dimensions (L x W x H) 1,600 x 2,550 x 2,403 mm
• Power lift three-point category 2 DIN/ISO 730-1
• Required hydraulic output 50 l/min at 180 bar
• Max. permissible hydraulic volumetric flow rate 75 l/min
• Electrical system 12 V
• Recommended tractor power min. 300 PS
