Pureflow Biofloc - Recirculating Aquaculture Skid Filtration System
The Recirculating Aquaculture Skid Filtration System by Pureflow Biofloc is engineered for efficient aquaculture operations with its compact design and low energy usage. These systems offer comprehensive water treatment solutions, encompassing mechanical, biological, chemical, and disinfection processes in a space-saving skid unit. They integrate automation features to reduce operational costs and human error, enhancing reliability. Key components include a Protein Fractionator with auto-foam leveling, Trickle Bio Reactor, UV Disinfection System, Ozone Generator, and various sensors for optimal system management. Constructed from durable PP material, these skids are resistant to harsh environments, maximizing operational life. The design ensures effective TAN removal while maintaining low energy consumption, making them a suitable choice for a variety of aquaculture applications, particularly those focusing on shellfish, with customizable options to meet specific operational needs.OFFER & USE OF RECIRCULATING AQUACULTURE SKID FILTRATION SYSTEMS

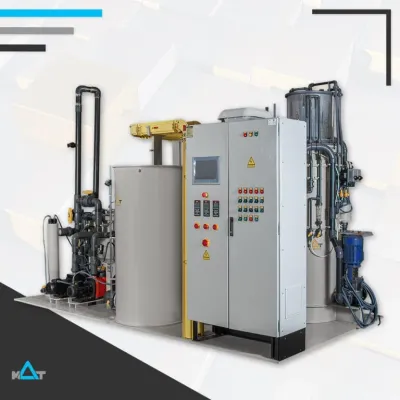

The Recirculating aquaculture skid filtration system is a complete filtration unit designed for simple Recirculating Aquaculture operation, with the smallest footprint and minimum energy consumption. The Units are equipped to provide complete mechanical, biological, chemical and disinfection water treatment. RAS Skid Units integrate automated operation decreasing the operational cost and human error probability of the facility.
MAT-KULING SKID units cover a wide range of the Recirculated Aquaculture Systems applications. RAS Skid Unit forms a user-friendly plug and play system for Biological filtration, Protein skimming and ozone – UV disinfection.
Skid is an integrated system consisting of all the essential equipment for Recirculated Aquaculture Systems, focusing on increased efficiency of mechanical, biological, chemical filtration, ozone infusion and UV disinfection. Our Skids are designed for optimized TAN (Total Ammonia Nitrogen) removal rate in the lower footprint. In Shellfish RAS Aquaculture applications, the SKD comes without sand filtration.
The RAS SKID Unit is equipped with:
- High Performance built in Protein Fractionator with optional auto-wash system & auto-foam levelling
- Protein Fractionator Venturi Pump
- Trickle Filter Bio Reactor with Air Blower
- Ultraviolet Disinfection System
- Ozone Generator System
- System Main Feed Pump
- Pump Motor VFD
- Basic Functions Button Console
- PLC (Optional)
- IP64 Electrical Board
- On/Off Alarm Indicator
- Water Level Sensors with Alarm
- Heat Pump
- ORP Sensors
- pH Sensor
- Temperature Sensor
- Flowmeter & Pressure Gauges
- ASI 316 Bolts & Nuts
Moreover The body of the Recirculating Aquaculture Skid System is made of PP. Hence, this minimizes the osmosis oxidation and provides durability against harsh operational conditions. Our RAS skids come fully assembled and hydrotested for fast and trouble-free installation on site. For optimum mechanical filtration capacity, the mechanical pressurized filter contains glass media to achieve better mechanical filtration and energy saving operation.
