GT Mfg., Inc.

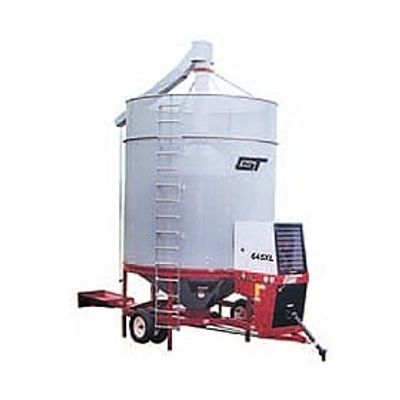

GT-Mfg - Model 645XL - Recirculating Batch Dryer
FromGT Mfg., Inc.
Four Tires, Ladder, Six Jack Stands, larger Plenum, Loading Hopper, Circulating Auger, PTO Tumbler Shaft, Dryer Controls – Grain Sampler, Fan Clutch, Access Door to Plenum, Vaporizer.
Most popular related searches
- Drying Capacity (20.5 - 15.5%): 385 bu./hr. (9.8 tonne/hr.)
- Bushel Capacity: 640 (16.3 tonne)
- Height to Top of Auger: 21` 2" (6.5 m)
- Transport Height: 13` 6" (4.2 m)
- Diameter of Bin: 11` (3.4 m)
- Grain Wall Thickness: 18" (45.7 cm)
- Vertical Auger Diamter: 12" (30.5 cm)
- Overall Length: 20` 5" (6.2 m)
- Burner Size BTU/hr. BTU/hr. (Max): 3,000,000 (879 kw)
- Electric Motor: 30 HP, 1750 RPM (22.3 kw)
- Weight, PTO Model: 4900 lbs. (2227 kg)
- PTO Speed: 525 RPM
- Recirculating Time: 17-21 min.
- Loading Auger Size: 8" (20.3 cm)
- Loading Rate: 2000 bu.hr. (50.8 tonne)
- Unloading Rate: 2000 bu.hr. (50.8 tonne)
- Fan Drive: Belt
- Fan Rating (CFM and Outlet Static Pressure): 17,200 CFM @ 1.5" WC (487 m @374 Pa)
- Fan Type: 32" Axial (81.3 cm)
2-Year Limited Warranty
GT warrants each new Dryer for two years. This warranty covers factory workmanship and material, under normal conditions, when the dryer is set up and is used in accordance with factory instructions.
GT will provide a replacement for any covered part found to be defective. Certain parts are not covered, and some restrictions do apply. For full details, see a copy of the limited Warranty available from your dealer.
