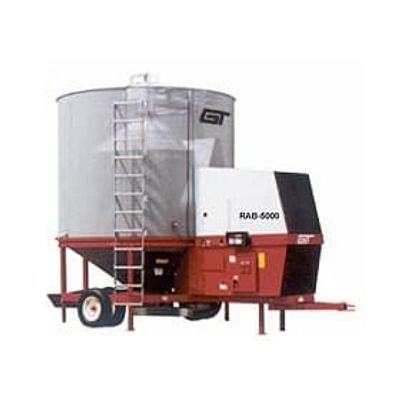

GT-Mfg - Model RAB5000 -Recirculating Batch Dryer
FromGT Mfg., Inc.
Loading Hopper Standard. Outlets for Auxiliary Loading & Unloading motors (10 HP Max.) Access Door to Plenum, Vaporizer, Horizontal Unloading Head, Dryer Controls – GT Grain Guard Four Tires, Circulating Auger, Eight Jack Stands, Grain Sampler.
Most popular related searches
- Transport Height: 13`6
- Diameter of Bin: 11` (3.4 m)
- Grain Wall Thickness: 18
- Vertical Auger Diamter: 12
- Burner Size BTU/hr.: 3,500,000 (1025 kw)
- Weight, PTO Model: 5,600 lbs. (2540 kg)
- Recirculating Time: 12-15 min.
- Loading Auger Size: 8
- Loading Rate: 2000 bu.hr. (50.8 tonne)
- Unloading Rate: 2000 bu.hr. (50.8 tonne)
- Fan Drive: Belt
- Fan Rating: 16,000 CFM @ 1.5
- Overall Width: 12`6
- Fan Type: Centrifugal
- Vertical Auger and Agitator: 10 hp
- Fan: 15 hp Three Phase
- Loading Auger: 5 hp
- Unloading Auger: 2 hp
2-Year Limited Warranty
GT warrants each new Dryer for two years. This warranty covers factory workmanship and material, under normal conditions, when the dryer is set up and is used in accordance with factory instructions.
GT will provide a replacement for any covered part found to be defective. Certain parts are not covered, and some restrictions do apply. For full details, see a copy of the limited Warranty available from your dealer.
