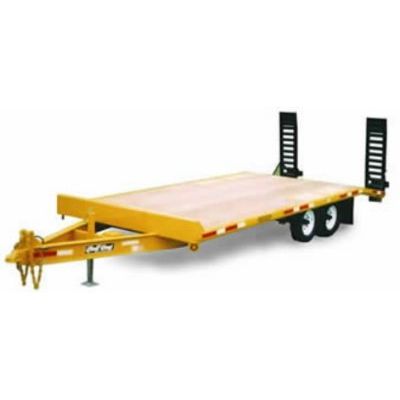

RediHaul - Model R20252FE -Flatbed Utility Trailers

FromRedi Haul Trailers

SHARE

Main Frame: 8" x 10# I-Beam, high strength structural steel. Frame Bedside: 5" x 6.7# channel, high strength structural steel. Bed Crossmembers: 3" x 2.9# Jr. I-Beam, high strength structural steel. Tongue: Formed part of main frame. Axles: 2 - 6,000#; 3" O.D. Beam, .25 wall; inner bearing, 1.75 I.D.; outer bearing, 1.75 I.D.

Most popular related searches

flatbed trailer

Brakes: 12" x 2" Electric Brakes on all wheels
Suspension: Slipper spring with equalizer, 5 leaf spring, 2" wide per axle per side, 3,500# per side per axle
Tires: 4 - ST225/75R x 15 "D" 2,540# each @ 65 PSI
Wheels: 4 - 6 x 15 single wheel, 4.27 pilot 6 on 5 1/2" bolt circle 2,600# each
Decking: 2" Nominal Wood deck treated
Deck Dimensions: 20` Long (16` Flat & 4` B-Tail) x 8` 6" Wide
Deck Height: 32"
Beavertail: 2" Nominal Wood deck treated
Load Angle: 11 degree beavertail load angle
Coupler: 2 5/16" Adjustable Height Ball Coupler
Landing Jack: 7,000# Drop leg jack
Ramps: 2 - Adjustable 60" ramps
Wiring: Sealed modular wiring
Lights: All D.O.T. required; sealed and shock mounted LED lights
Extras: Mudflaps, 3/8" x 36" Grade 43 safety chains w/ slip hook & safety latches, stake pockets & tie rail
G.V.W.R.: 12,190#
Capacity: 8,960#
Weight: 3,452#

8` Wide Deck
20` Long Deck (16` Flat & 4` Beavertail)
2- 5` Ramps
2" Nominal Pine Wood Deck
7,000# Drop Leg Landing Jack
Electric Brakes & 6 Bolt E-Z Lube Hubs
Saefty Chains with Snap Hooks
Sealed and Shock Mounted LED Lights
Sealed Modular Wiring System
Safety Breakaway System with Battery
Stake Pockets with Tie Rail (101" O.A.W)
2 5/16" Adjustable Height Ball Coupler

Hydraulic Surge Brakes
Gooseneck Hitch
2 1/2 Pintle Eye Hitch
Full Width Expanded Metal Ramp with Spring Assist
Spring Assist with Ramps
Less Beavertail and Ramps
Expanded Metal on Bottom of Tongue
Shorten Deck Length
Extra Feet
Oak Deck
Spare Tire
Spare Tire Mount
