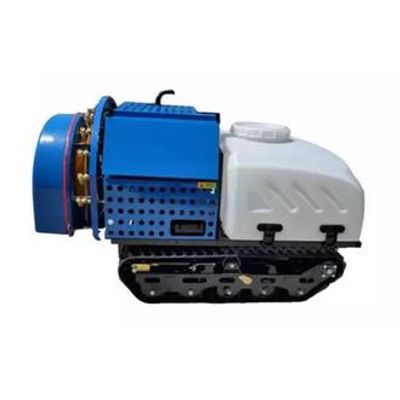

Lanjiang - Remote Control Orchard Sprayer Vehicle
Professional Spraying Effect: Proven technology. Patented spray system. Plant protection dedicated blower. Generates even and appropriate fog droplets. Spray from the bottom, can penetrate every leaf and both leaf sides.
Most popular related searches
crop protection machine
orchard protection
crop protection
orchard spraying
orchard
crop protection spray
crop protection system
orchard machine
pesticide applicator
Save labor to a greater extent!
- Efficient operation, no need for large quantity of workers.
- Easy operation, no need for skillful driving.
- Large capacity, no need for frequent refilling pesticide and power.
- Crawler chassis.
- Can shuttle in narrow corner.
- Climb uneven grounds.
- No fear of soil in rainy days.
- Dwarf and narrow body.
- Can shuttle in greenhouses.
- Power Type: Petrol-electric Hybrid
- Power Specifications: 15kw petrol engine + 5*45AH large-capacity battery
- Wheel Type: Caterpillar
- Overall Dimensions: 190cm(L)*120cm(W)*115cm(H)
- Ground Clearance: 17cm
- Pesticide Tank Volume: 450L(super large)
- Spraying Range: 15m wide, 6m high
- Atomizing Effect: 150-400μm (droplet size too small, will be blown by wind; too large, will drip down)
- Climbing Ability: 30° MAX climbing angle, 15° MAX inclination
- Movement Speed: 3km/h MAX
- Maximum Load: 1000kg
- Operation Time: 1 tank of petrol ≥8h; 1 tank of pesticide ≥26min
- Operation Efficiency: 5.93 acre/h
- Operation Method: Remote Control
- Effective Range of Remote Controller: 100m
- Nozzle: 12 adjustable(can adjust 30°) double heads(0.8mm diameter and 1.2mm diameter) nozzles
- Safety: Ultrasonic radar, automatic stop before barriers
- Intelligence: Low pesticide liquid level alarm
