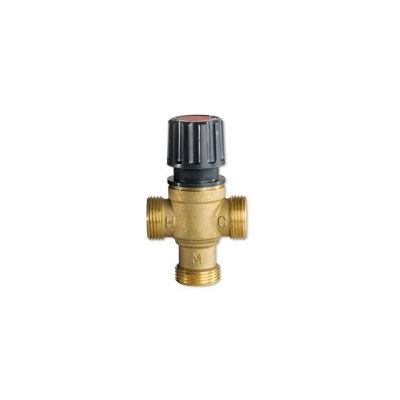

RESOL - Model MA10/25 -Domestic Water Mixer Valve

Domestic water mixer for an independent regulation and limitation of the domestic water temperature without auxiliary energy, continuously adjustable between 35 °C and 65 °C. PN 10 bar, entrance temperature 90 °C

In systems with stub or circulation pipes with screwed or soldered connections (according to scheme), any installation position is possible.H = hot water connection | C = cold water connection | M = mixed water outlet

• Housing: dezincification-resistant brass
• Connections: CuZn39Pb3 (2.0401)
• Adjustment range: 35 ... 65 °C
• Guide components: PTFE
• Internal seal: EPDM
• External seal: asbestos-free, flat-sealing
• Operating pressure: max. 10 bar
• Max. hot water temperature: max. 90 °C
