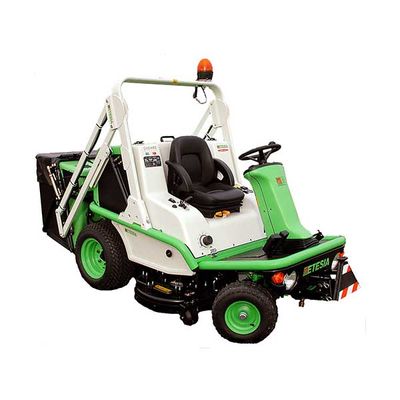

Etesia - Model HYDRO 124 DN - Ride-on Mower

A MORE IN-DEPTH LOOK AT THE ETESIA HYDRO 124DN

• Cutting Width: 124cm
• Dimensions (L x W x H): 280 x 128 x 174 cm
• Weight: 845kgs
• Engine HP: 25HP
• Transmission: Hydrostatic

Motor Specification

• Amount of Cylinders: 3
• Horse Power: 25HP
• Fuel: Diesel
• Fuel Tank Capacity: 19 litres

Wheel Transmission Specification

• Transmission Type: Hydrostatic
• Number of Wheel Drive: 2
• Forward Speed (km/h): 16
• Reverse Speed (km/h): 16
• Turning Radius (m): 1
• Working Angle (%): 30
• PTO: Yes

Mower Specification

• Output (theoretical): 19000 m²/h
• Number of Blades: 2
• Cutting Width: 124cm

Emptying System

• Grass Box Capacity: 600 litres

Measurement and Weight Specification

• Height: 174cm
• Width: 128cm
• Length: 280cm
• Weight: 845kgs

 *Specifications are correct at time of print and are subject to change without notice.

BETTER MOWING

• 1.24m cutting width with two counter-rotating blades which are mounted at right angles.

BETTER COLLECTING

• Cutting deck with rear ejection to give a quality finish with excellent collection even in long and wet grass.
• Grass box filled to capacity every time : 600 L / 100 kg
• Emptying can be carried out at any height from floor level up to a maximum of 1.8 metres without leaving the driver seat.

FASTER WORK

• To work faster at speeds up to 16km/h depending on conditions.

COMPACT AND VERSATILE

• The weight is distributed with 30% on the front axle and 70% on the rear.
• Differential lock through flow divider.

SAFE

• Standards: Meets all safety requirements.

OPERATOR COMFORT

• The steering console is fully adjustable up or down, forward and back. Seat with arm rests, can be titled ; adjust to the operator’s weight and is adjustable back and forwards.
• The operator is provided with all-round visibility.
• Noise: because Etesia’s direct rear-ejection system is so effecient, no noisy turbines are required.

ROBUST AND RELIABLE

• Transmission: hydraulic wheel motors.
• Blade clutch: electromagnetic with built-in brake.

MULTI-FUNCTIONAL

• A glass-panelled cab is available as an option, it can be equipped with a heating system.
• PTO for front accessories: sweeper, snow blade, scarifier, blower.
• The Etesia Hydro 124 ride-on mower can be fitted with an optional new mulching deck, the MCM 144. It then becomes a formidable mulcher offering the unrivalled performance of a 1.44 m cutting width.
