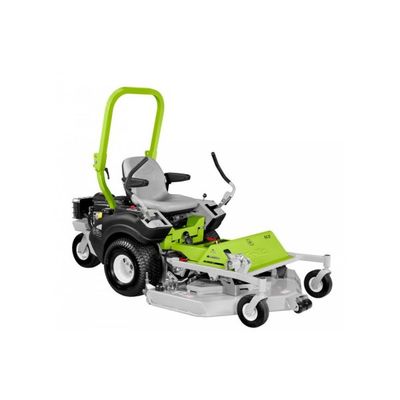

Grillo ZeroTurn - Model FX 27 - Ride On Mowers
FromGrillo SPA
Engine : Briggs & Stratton Series 8270 Commercial. Start electric, with 12 V battery. Supply fuel. Displacement 724 cc, 2 Cylinders. Power 22 HP (16.2 kW). Air cooled. Dry air filter with interchangeable filter cartridges.
Most popular related searches
- Fuel tank capacity : 30 L (2 x 15 L)
- Traction : 2WD
- Gearbox : Hydrostatic transmission with ZT 3100 ZM Hydro-Gear built-in pump and motor.
- Clutch : Electromagnetic PTO clutch
- Cutter deck : Front and rotating cutting deck with 3 blades, floating cutter deck with mulching and rear discharge functions operated by lever from driver seat. Electric-operated folding system of cutting deck for easier maintenance.
- Cutting deck width : 1320 mm
- Cutting width : 1250 mm
- Cutting height : Electrically and continuously adjustable from 30 to 85 mm
- Front tyres : 20x10.00-8 Turf
- Rear tyre : 15x6.00-6 Turf
- Steering system : Through levers, with height and lengthwise adjustment.
- Speed : Continuously variable from 0 to 12 km/h and from 0 to 6 km/h in reverse
- Inner turning radius : Zero Turn
- Seat : Comfort seat with armrests and lengthwise adjustment, fitted on support with adjustable air suspension. Tipping system operated by gas spring.
- Parking brake : Built-in in the hydrostatic transmission. Automatically operated when opening the steering control levers.
- Mowing capacity per hour (indicative) : 13000 m^2/h
- Standard features : Tow hook and anti-lift system to improve the machine`s stability on slopes, roll-bar.
- Length : 2580 mm with cutter deck
- Width : 1120 mm without cutter deck - 1320 mm with cutter deck
- Height : 1700 mm (with raised roll-bar); 1160 mm (with lowered roll-bar)
- Weight : 484 kg with cutter deck
