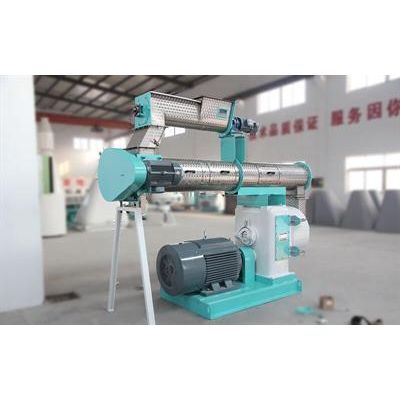

Azeus - Model SZLH -Ring Die Poultry Feed Pellet Mill

Different from flat die feed pellet mill mainly used for making pellets for their own animals, ring die poultry feed pelletizer is more efficient and suitable for industrial poultry feed pellets production-large farms or feed pellets factory. Equipped with conditioner, this pellet mill equipment can make the material fully mixed and ripen, thus the finished feed pellets have more smooth surface and better quality. Featured by high throughput and low consumption, ring die poultry feed pelletizer has enjoyed great popularity.

1. Built-in steam collection conditioner can mix and cook materials fully and uniformly to meet special needs and ensure high quality of final poultry feed.
2. Driven by high precision gear transmission system which ensures high productivity (about 20% higher than belt transmission) and low energy consumption.
3. Adopt imported SKF bearings & NAK oil seals to get better transmission performance, stable operation and less noise.
4. Feeding device adopts frequency conversion speed regulating motor to guarantee the particles quality.
5. Multiple aperture ring die for choice, excellent craft of ring die with long service life
6. The international advanced compensation type spring coupling device is of novel and compact structure, reliable and low failure rate.
7. Overload protection and electrical control system to ensure stable performance.
8. Tow or three jacket conditioners can be customized to upgrade to be aquatic feed pellet mill for making high grade feed pellets.

Pellets diameter: 2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Pellets shaping rate: ≥95%
Pellets stability in water: ≥20Min
Roller working temperature: ≤85℃
Steam working pressure: 0.1-0.4Mpa
Steam temperature: 130-150℃
