ParmaModel Rigid - Rollaharrow

SHARE

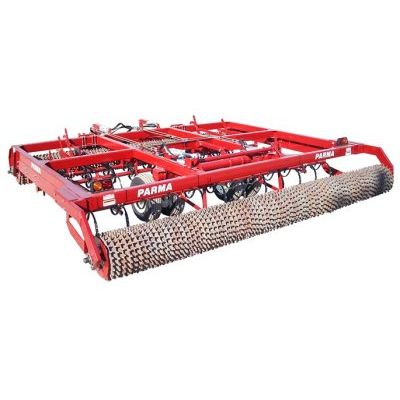

The Parma Rollaharrow comes in various sizes ranging from 12ft to 24ft in a rigid frame. The 4-Bar units come standard with four rows of heavy duty S-Tines properly spaced to allow optimum tillage without trash buildup and plugging. Also among the standard features is a hydraulically controlled leveling bar to smooth and level the soil behind the S-Tines. The Parma original `wheel forward` axle design with 12-ply tires lifts the front end first to provide better balance for quick lifting and smoother operation in turnaround and transport. The `loose fit` style front and rear packer rollers are available in various sizes and cast steel ring composites. Also available are crowfoot rollers and welded pipe rollers all mounted on large 2 3/16` shafts and triple-lipped sealed bearings.

Most popular related searches
  • Sizes Range From 12 to 24 feet in Width
  • Extended Rear Roller Option
  • Tractor Requirements: 7-10 hp per foot (i.e. 20ft x 10hp = 200hp)
  • Overall Length (approx.): 24` (15 w/o tongue) 4-bar
  • Towing Width: Add 1` to designated width (12`-24`)
  • Shipping Width: - .
  • Front Roller Installed: 13`2"    4-Bar
  • Front Roller not Installed: 12`  4-Bar
  • Spring Teeth (S-Tine): Heavy Duty 1/2 x 1-1/4 High Clearance Opt.
  • Reversible Points: 1-1/2" Wide
  • Tires & Wheels: 2`-16` 9.5L x 158ply (Std.), 18`-24` 11L x 15 12ply (Std.)
