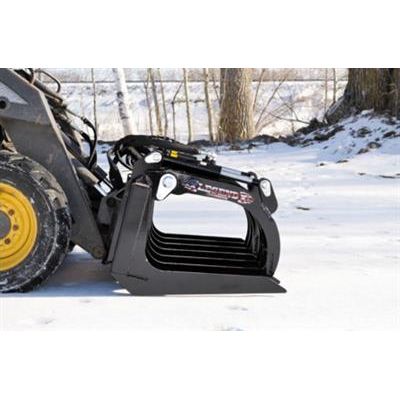

Legend - Model 33081 - Root Grapple
For the most powerful skid steers with the toughest of jobs. Move large loads with ease. Closes tighter than most other grapples. Clears large logs, rocks, brush and demolition materials.
Most popular related searches
Model 33081
- Overall Width: 73″
- Overall Height (Closed): 28″
- Overall Height (Open): 43″
- Overall Depth: 36″
- Grapple Opening: 36″
- Depth of Bucket: 27″
- Tines: 1″ T-1 High Strength Steel
- Top Tube: 3″ x 3″ x 1/4″
- Bottom Tube: 3″ x 4″ x 1/4″
- Grapple Arms: 3/4″ Grade 50, Laser Cut
- Cylinders: 2 1/2″ Bore
- Hydraulic Couplers: Flat Face
- Hydraulic Hoses: 3/8″
- PSI Max: 3,000 PSI
- Pivot Points: Grease Zerks
- Main Pin: 1.75″ x 20″
- Rear Cylinder Pin: 1″ x 6″
- Front Cylinder Pin: 1″ x 5.5″
- Weight: 1,025 lbs.
