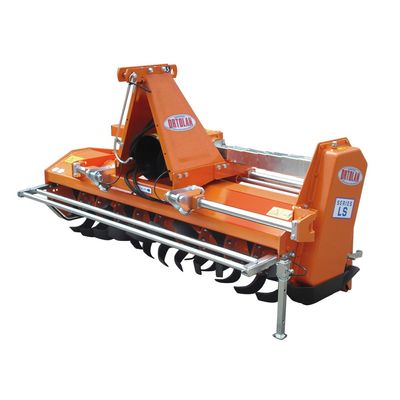

OrtolanModel LS Series -Rotary Tiller

SHARE
LS Series Single Speed Movable Rotary Tiller For Tractors From 20 To 40 HP (15 - 29KW). The rotary tiller series LS was designed for preparing the soil for sowing, it is widely used in agriculture and horticulture. Ideal for vineyards and orchards. Available in 5 models in different working widths of 120, 135, 150 and 165 cm. Equipped with a 540 rpm speed reducer, cardan joint, rotor with 6 helical blades per flange, automatic chain tensioner, manual lateral movement, 1st category adjustable 3-point hitch.
Most popular related searches
  • CE standard equipment
  • Speed reducer 540 rpm (rotor rpm 260 rpm)
  • Cardan with safety bolt limiter 1 ”3/8 z6 connection
  • 1st category adjustable tractor hitch
  • Adjustable skids Helical hoes (side hoes facing outwards)
  • Chain transmission in oil bath
  • Automatic chain tensioner
  • Rotor with six blades for fl ange
  • Lateral movement by screw with crank

Power

From 20 to 40 HP.

From 15 to 29 KW.

Weight

From 275 to 355 kg.

Measures

From 100 cm to 115 cm working width.

From 115 cm to 180 cm transport width.

Depth

Soil tillage depth: 15 cm.
